Installation (LA4A-EL)

WARNING: This page is about a different car, the 2002 Mazda 626. However, it is still accessible from the selected car via links, so may be relevant.
  1. Shift the transaxle into Neutral position. Install the TR switch on the manual lever shaft. See Figure . Hand tighten the 2 TR switch mounting bolts. Use the Special Service Tool (SST) 49-UN01-086, to align the TR switch on the shaft and case. See Fig 1 .
  2. Tighten the 2 TR switch mounting bolts to specification. See TORQUE SPECIFICATIONS  . Connect the TR switch harness connector. Install the air cleaner assembly and fresh-air duct. See Figure . Install the battery tray and battery. See Figure . Tighten battery tray bolts and battery hold down to specification. Connect the positive and negative battery cables.

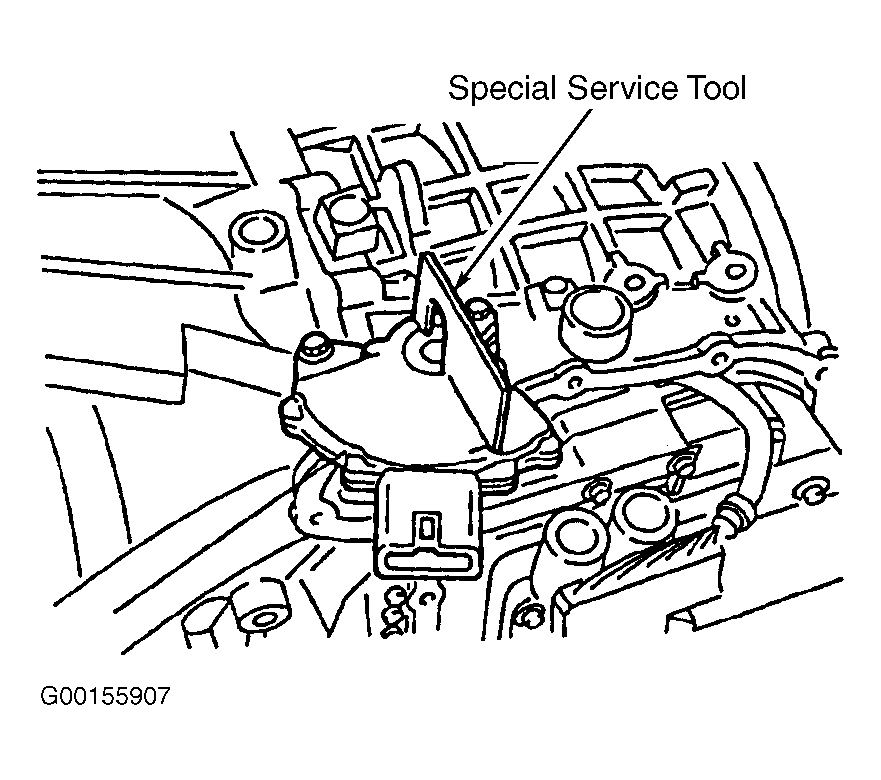

Fig 1: Adjusting Transaxle Range Switch (LA4A-EL)
G00155907Courtesy of MAZDA MOTORS CORP.
