Installation (GF4A-EL)

WARNING: This page is about a different car, the 2002 Mazda 626. However, it is still accessible from the selected car via links, so may be relevant.
  1. Rotate the manual shaft to converter housing side fully, then return 2 notches to set the Neutral position. Turn the TR switch so that the Neutral position mark is in line with the flat, straight surfaces on either side of the manual shaft. See Fig 1 .
  2. Hand tighten the transaxle range switch mounting bolts. Verify that there is continuity between terminals "A" and "H" of the TR switch harness connector. See Figure . Tighten the TR switch mounting bolts. See TORQUE SPECIFICATIONS  .
  3. Install the manual selector lever and spring washer. Tighten the manual selector lever nut to specification. See TORQUE SPECIFICATIONS  . Verify that the manual selector lever range position and TR switch are aligned, then connect the shift cable and install a new spring pin and clip. See Figure .
  4. Inspect continuity of the TR switch. See Fig 2 . Connect the TR switch connector. Install the air cleaner assembly, fresh-air duct, and resonance chamber. See Figure . Connect the negative battery cable. Inspect operation of the TR switch.
Fig 1: Aligning Transaxle Range Switch (GF4A-EL)
G00155889Courtesy of MAZDA MOTORS CORP.

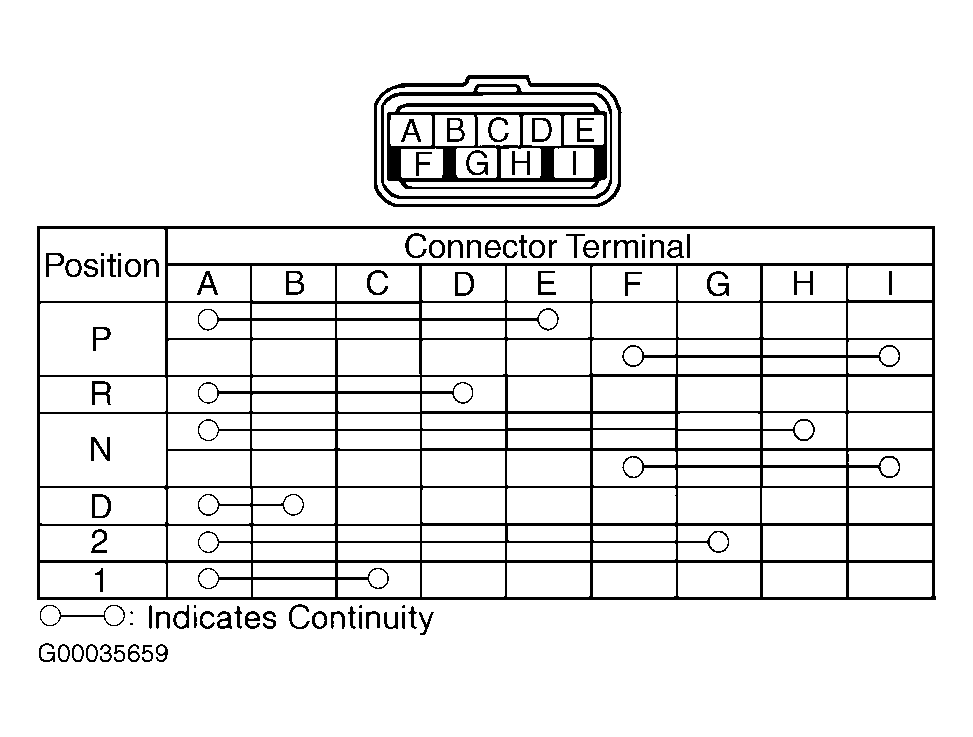

Fig 2: Checking Transaxle Range Switch Continuity (GF4A-EL)
G00035659Courtesy of MAZDA MOTORS CORP.
