Removal & Installation
WARNING: This page is about a different car, the 2002 Mazda 626. However, it is still accessible from the selected car via links, so may be relevant.

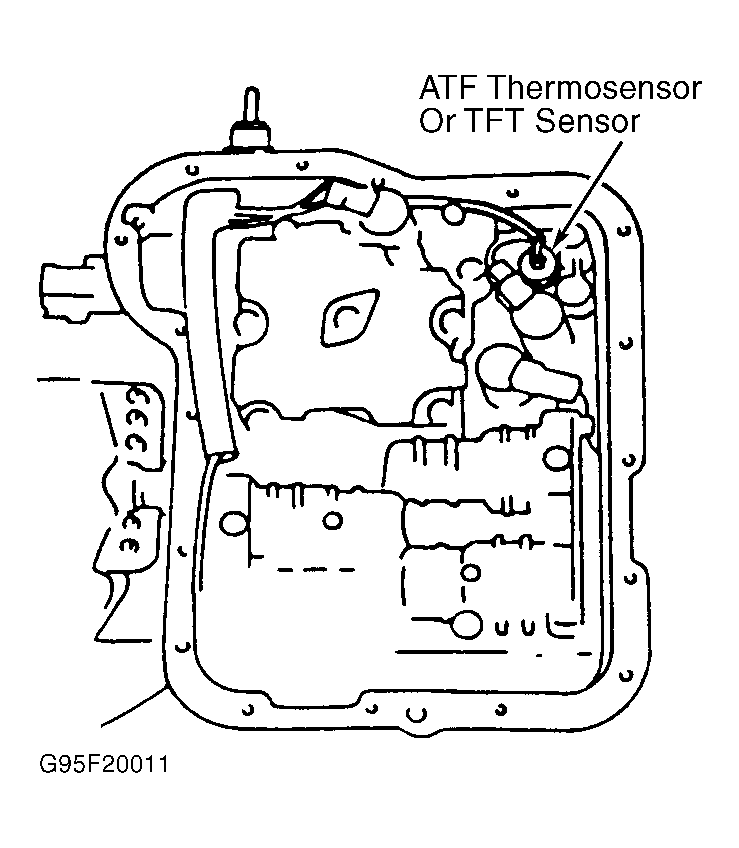

Remove the valve body cover. See VALVE BODY . Disconnect the Transaxle Fluid Temperature (TFT) sensor harness connector. Remove the TFT sensor. See Fig 1 . Install new TFT sensor. Tighten TFT sensor bolt to specification. See TORQUE SPECIFICATIONS . Connect the TFT sensor connector. Install the valve body cover. See VALVE BODY .
