Solenoid Body (La4A-El): Removal

WARNING: This page is about a different car, the 2002 Mazda 626. However, it is still accessible from the selected car via links, so may be relevant.

Remove the valve body assembly. See VALVE BODY . Remove the solenoid body assembly. See Fig 1 . Remove the solenoid gasket from the accumulator body. See Fig 2 . Discard the solenoid body gasket.

Fig 1: Removing & Installing Solenoid Body Bolts (LA4A-EL)

Courtesy of MAZDA MOTORS CORP.

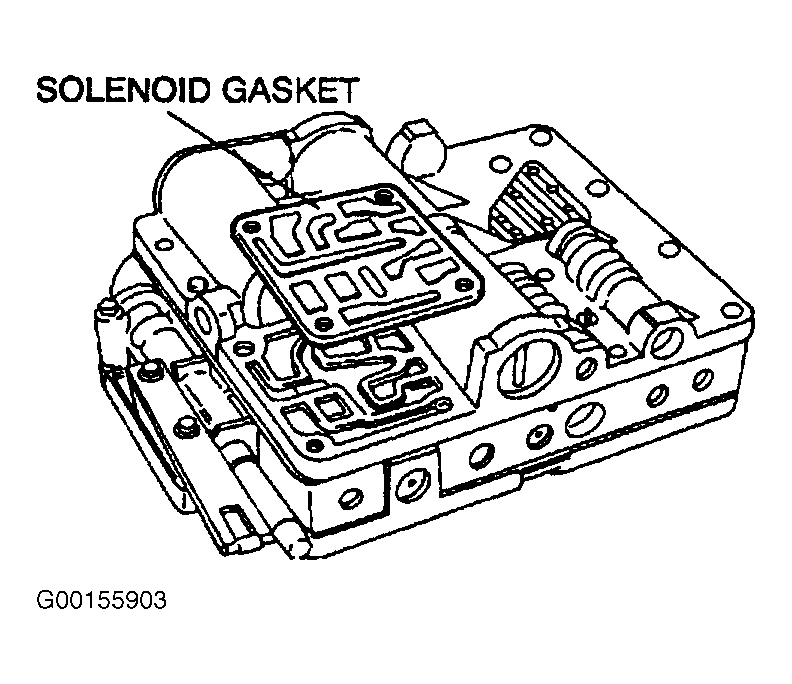

Fig 2: Identifying Solenoid Body Gasket (LA4A-EL)

Courtesy of MAZDA MOTORS CORP.
