Oil Pan Gasket: La4A-El

WARNING: This page is about a different car, the 2002 Mazda 626. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: For transaxle oil pan gasket identification, see Fig 1 .

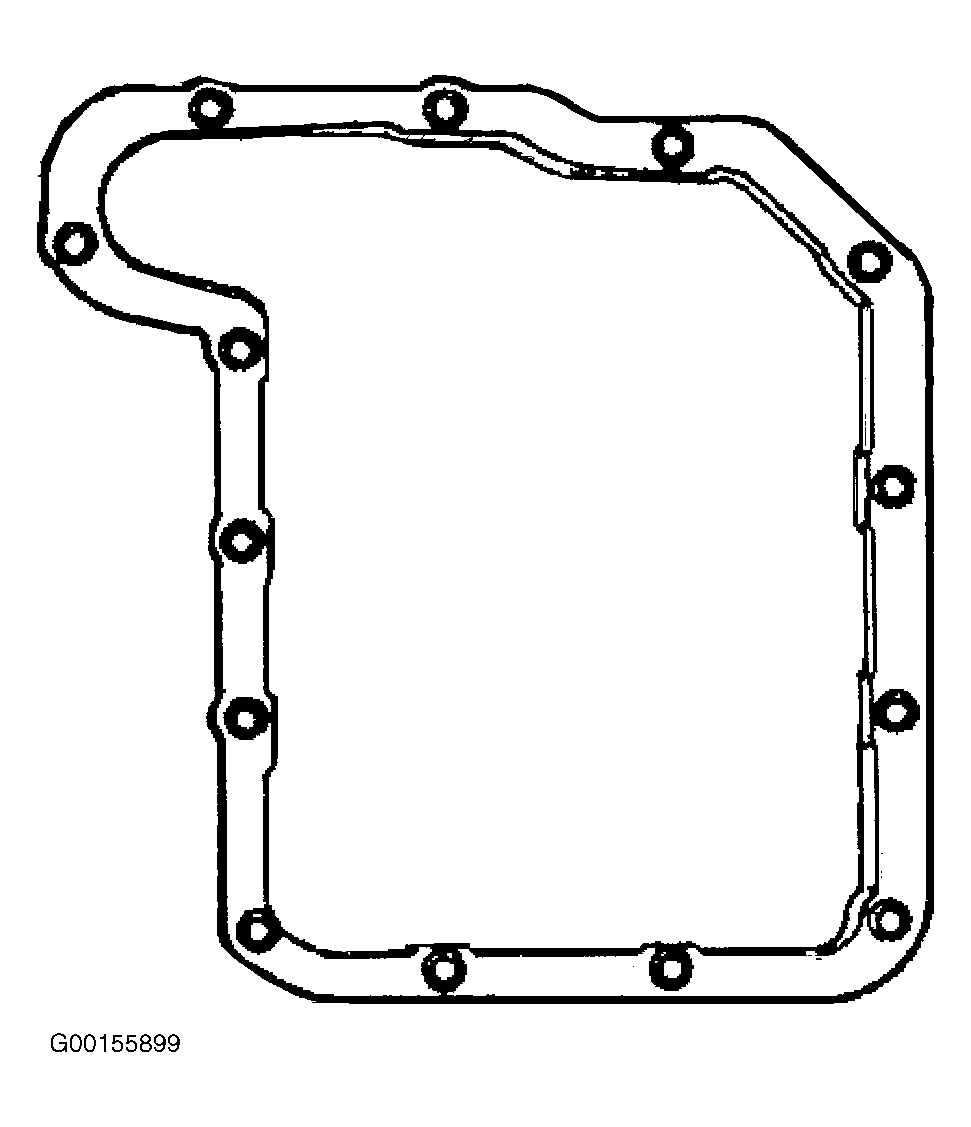

Fig 1: Identifying Valve Body Cover Gasket (LA4A-EL)
G00155899Courtesy of MAZDA MOTORS CORP.
