Section 419 (On-Board Diagnostic (Air Bag System - Standard Deployment Control System))
>>
DTC 35: Passenger-Side Side Air Bag Sensor System (Communication Error)
>>
Notes
DTC 35: Passenger-Side Side Air Bag Sensor System (Communication Error): Notes
WARNING:
This page is about a different car, the 2005 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.

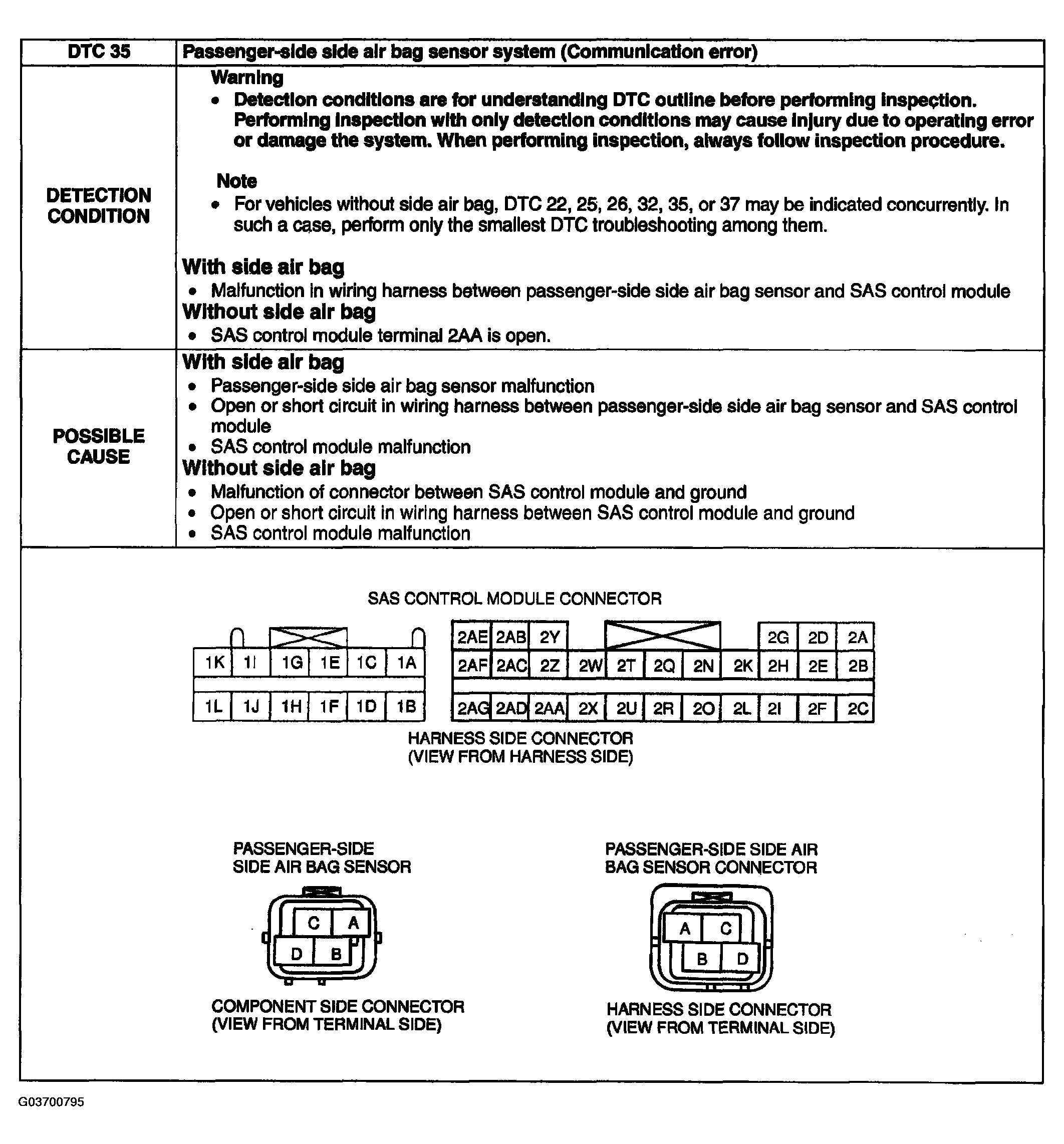

Fig 1: DTC 35 - Detection Condition And Possible Cause Chart
Courtesy of MAZDA MOTORS CORP.
