DTC 11: Driver-Side Pre-TENSIONER Seat Belt System: Notes

WARNING: This page is about a different car, the 2005 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.

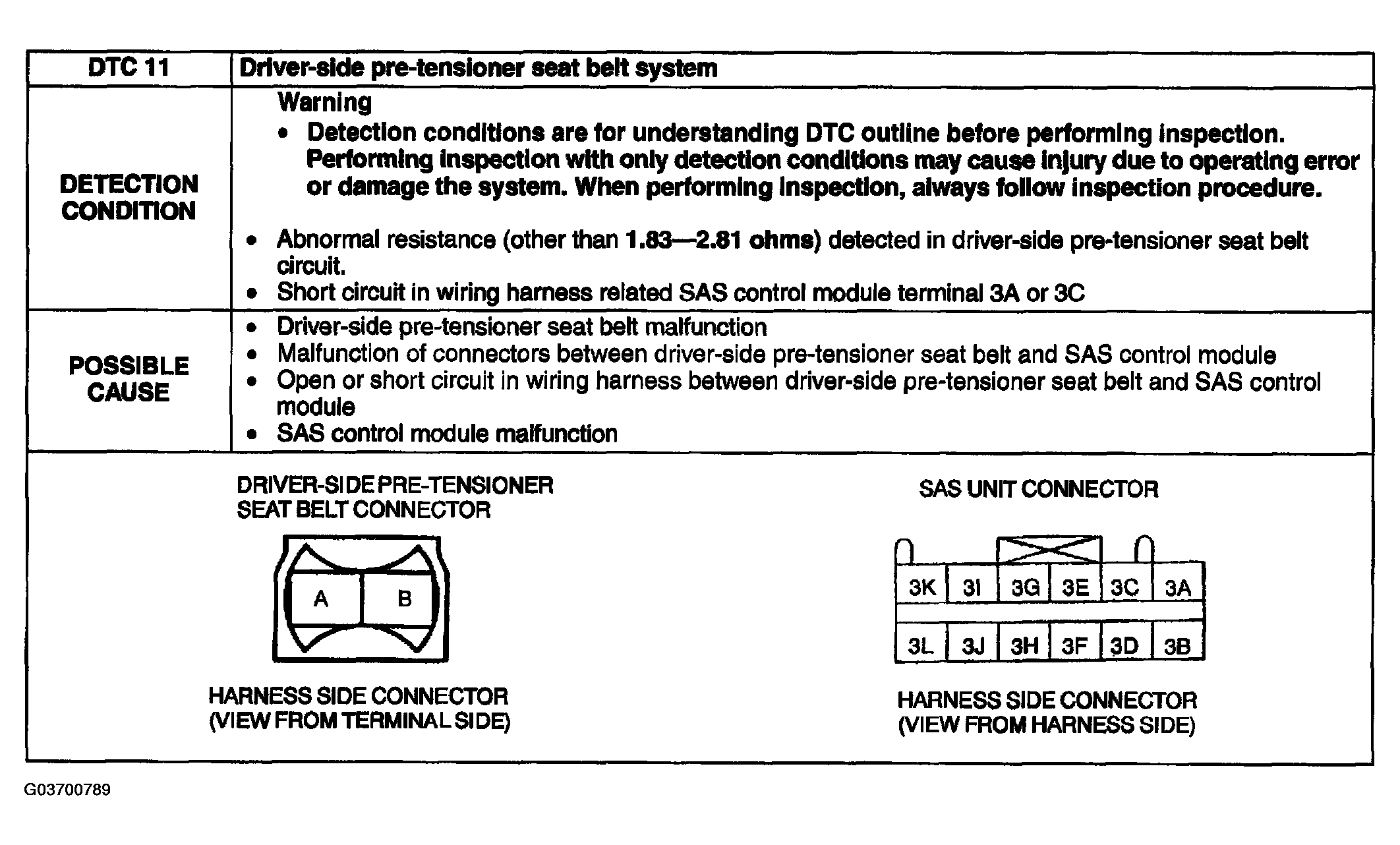

Fig 1: DTC 11 - Detection Condition And Possible Cause Chart
G03700789Courtesy of MAZDA MOTORS CORP.
