For Second-row Seat

WARNING: This page is about a different car, the 2005 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.
  1. Partially peel off the front floor covering. (See FRONT FLOOR COVERING REMOVAL/INSTALLATION .)
  2. Remove in the order indicated in the table.

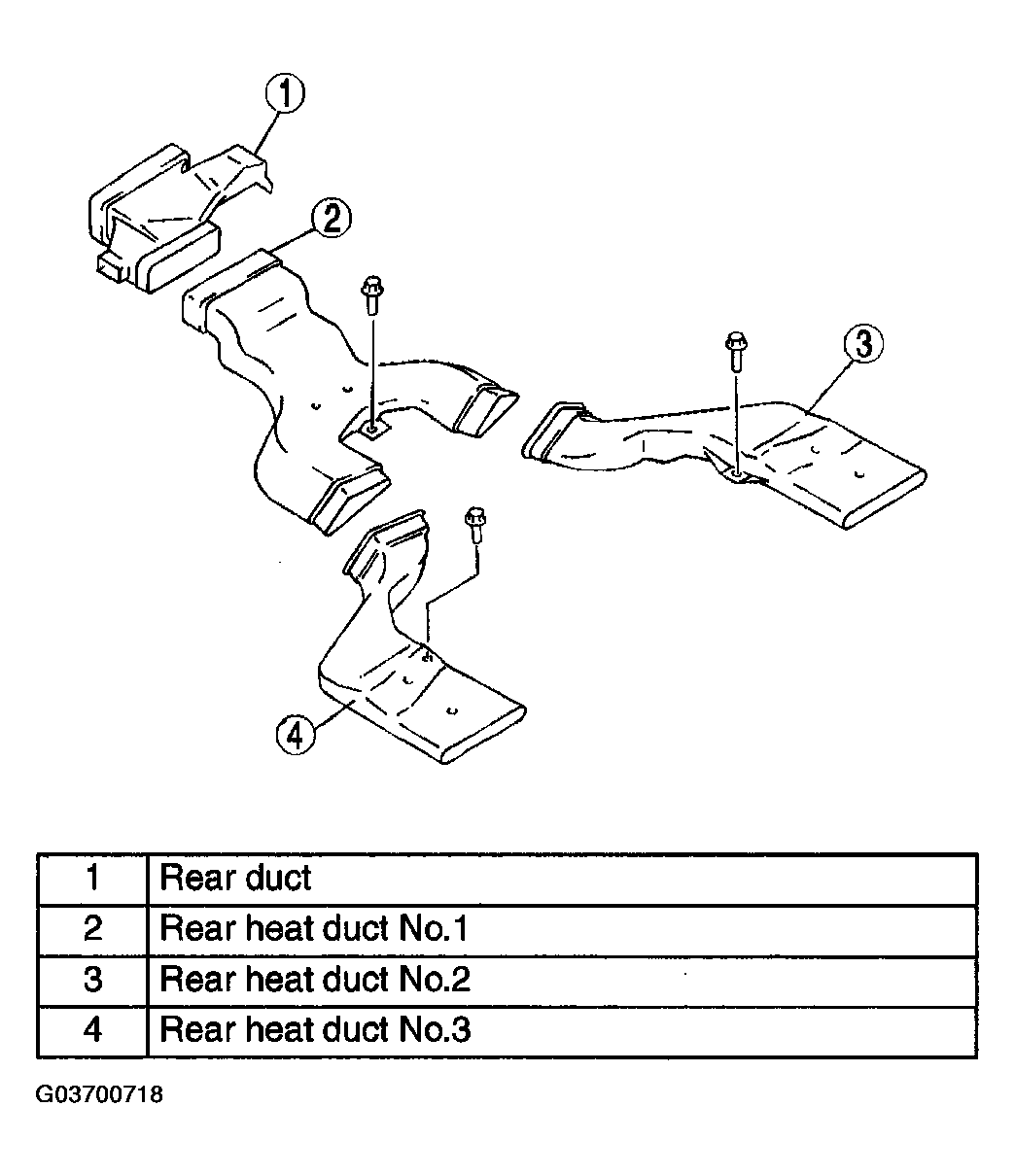

    Fig 1: Removing Rear Heat Duct Component (Second-Row Seat)
    G03700718Courtesy of MAZDA MOTORS CORP.
  3. Install in the reverse order of removal.
