Rear Cooler Duct Removal/Installation

WARNING: This page is about a different car, the 2005 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable.
  2. Remove the passenger-side rear side trim and C-pillar upper trim.
  3. Remove the headliner. (See HEADLINER REMOVAL/INSTALLATION .)
  4. Remove in the order indicated in the table.

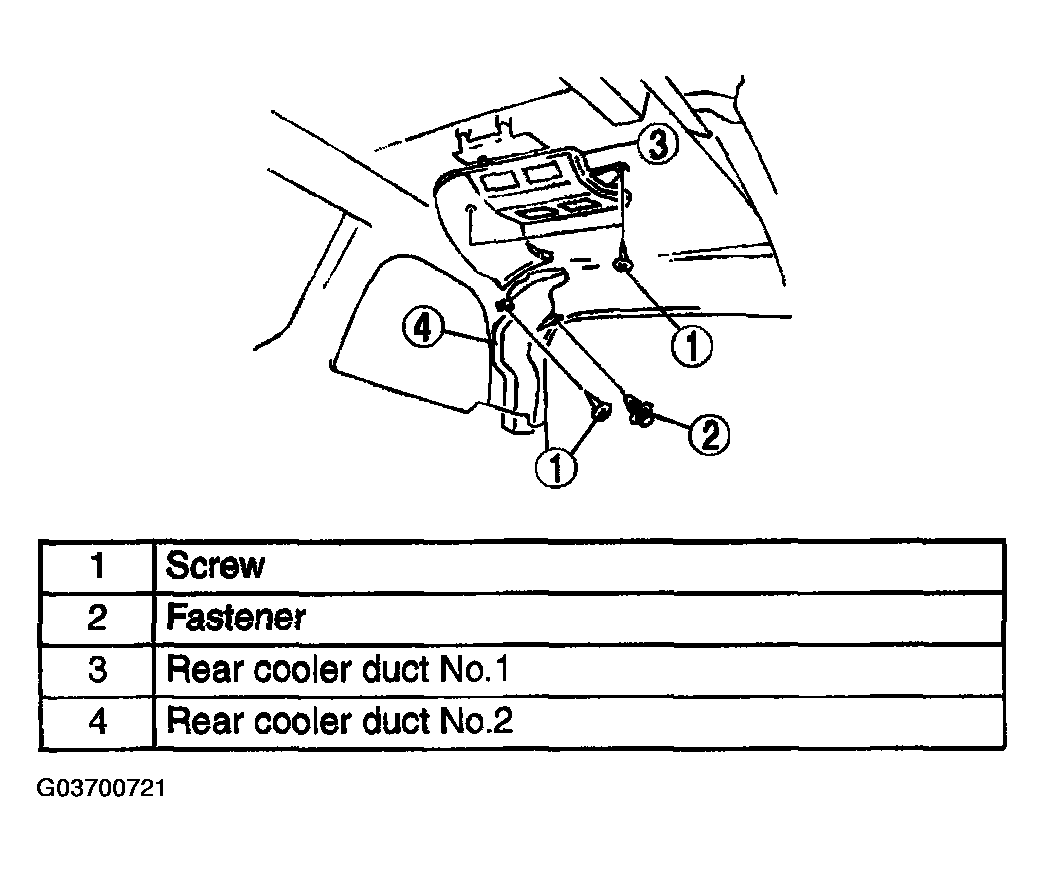

    Fig 1: Removing Rear Cooler Duct
    G03700721Courtesy of MAZDA MOTORS CORP.
  5. Install in the reverse order of removal.
