Transaxle Fluid Temperature (TFT) Sensor Inspection

WARNING: This page is about a different car, the 2005 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the coupler component.
Remove the oil dipstick.
Insert the thermistor probe into the filler tube.
Start the engine.

Fig 1: Identifying Thermistor Probe
Courtesy of MAZDA MOTORS CORP.

Measure resistance between the terminals G and F.

If not as specified, replace the TFT sensor. (See AUTOMATIC TRANSAXLE REMOVAL/INSTALLATION .) See OVERHAUL - JA5A-EL .

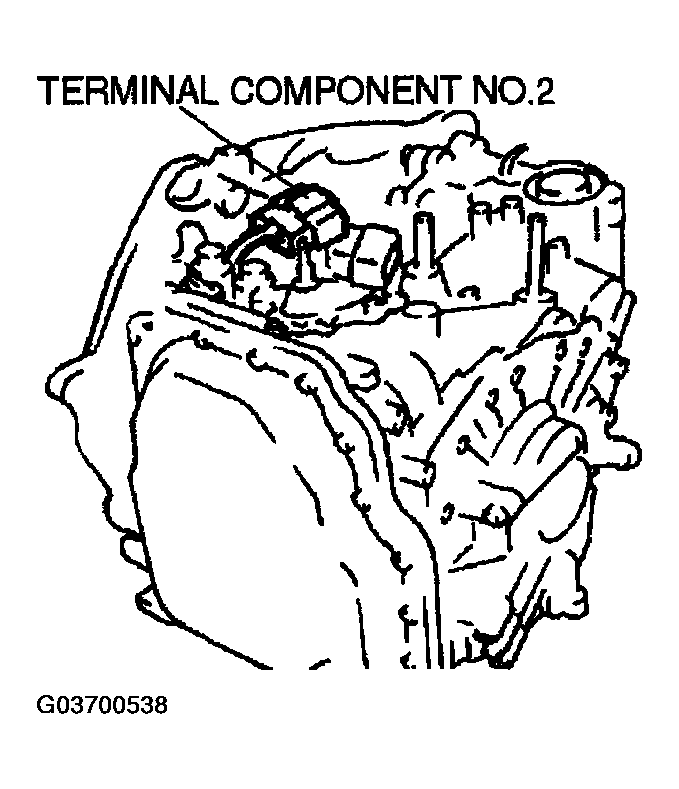

Fig 2: Identifying Terminal Component No.2

Courtesy of MAZDA MOTORS CORP.

ATF TEMPERATURE AND RESISTANCE

ATF temperature (°C {°F})	Resistance (kilohm)
-20 {-4}	15.87-17.54
0{32}	5.73-6.33
20 {68}	2.38-2.63
40{104}	1.10-1.22
60{140}	0.56-0.62
80{176}	0.31-0.34
100{212}	0.18-0.20
120{248}	0.11-0.12
130{266}	0.09-0.10

Fig 3: Identifying Terminal Component No.2 Connector Terminals

Courtesy of MAZDA MOTORS CORP.

Fig 4: ATF Resistance Graph

Courtesy of MAZDA MOTORS CORP.

Connect the coupler component.
