TCM Removal/Installation

WARNING: This page is about a different car, the 2005 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable.
  2. Remove the floor mat of passenger seat.
  3. Remove in the order indicated in the table.
  4. Install in the reverse order of removal.
  5. Install the floor mat of passenger seat.
  6. Connect the negative battery cable.

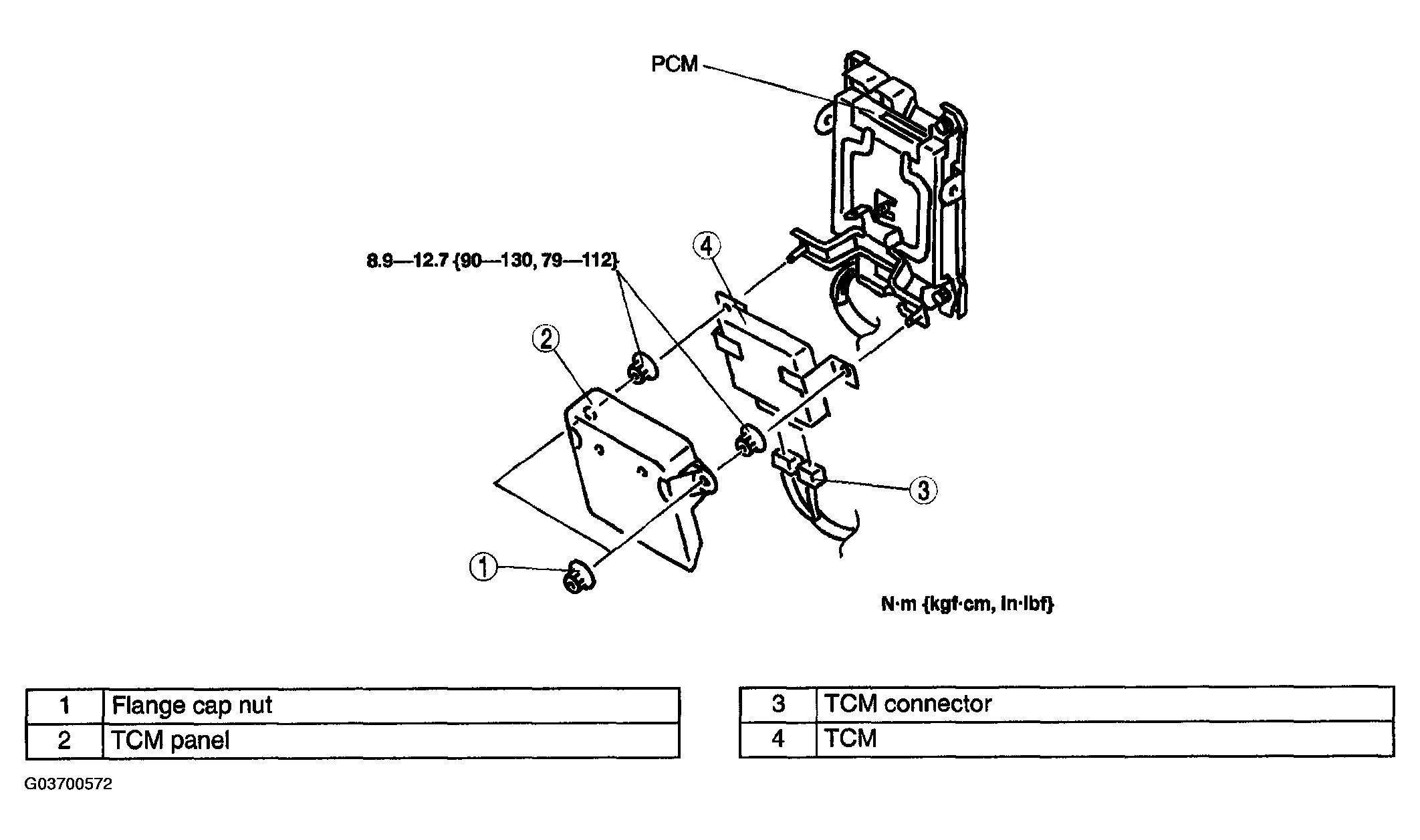

    Fig 1: TCM Replacement Components -- With Torque Specifications
    G03700572Courtesy of MAZDA MOTORS CORP.
