Input/turbine speed sensor signal

WARNING: This page is about a different car, the 2005 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.

TCM terminal: 1N (+)-2F (-)
Oscilloscope setting: 1 V/DIV (Y) 1 ms/DIV (X)
Measuring condition; Turbine speed at 700 RPM, N position

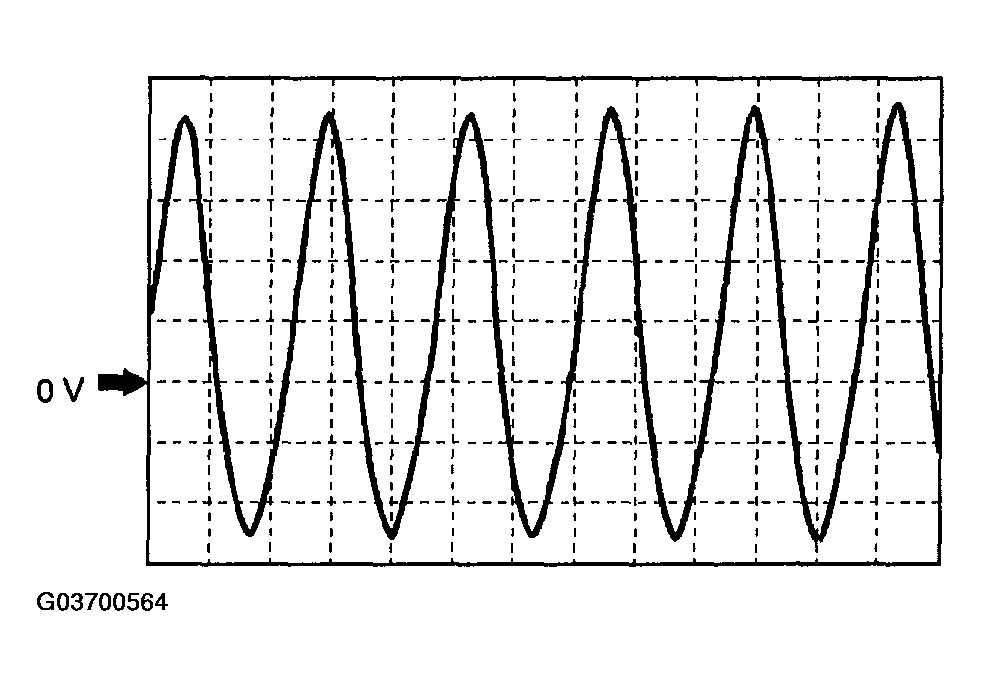

Fig 1: Input/Turbine Speed Sensor Signal Oscilloscope Graph
Courtesy of MAZDA MOTORS CORP.
