Typical Shift Diagram

WARNING: This page is about a different car, the 2005 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.

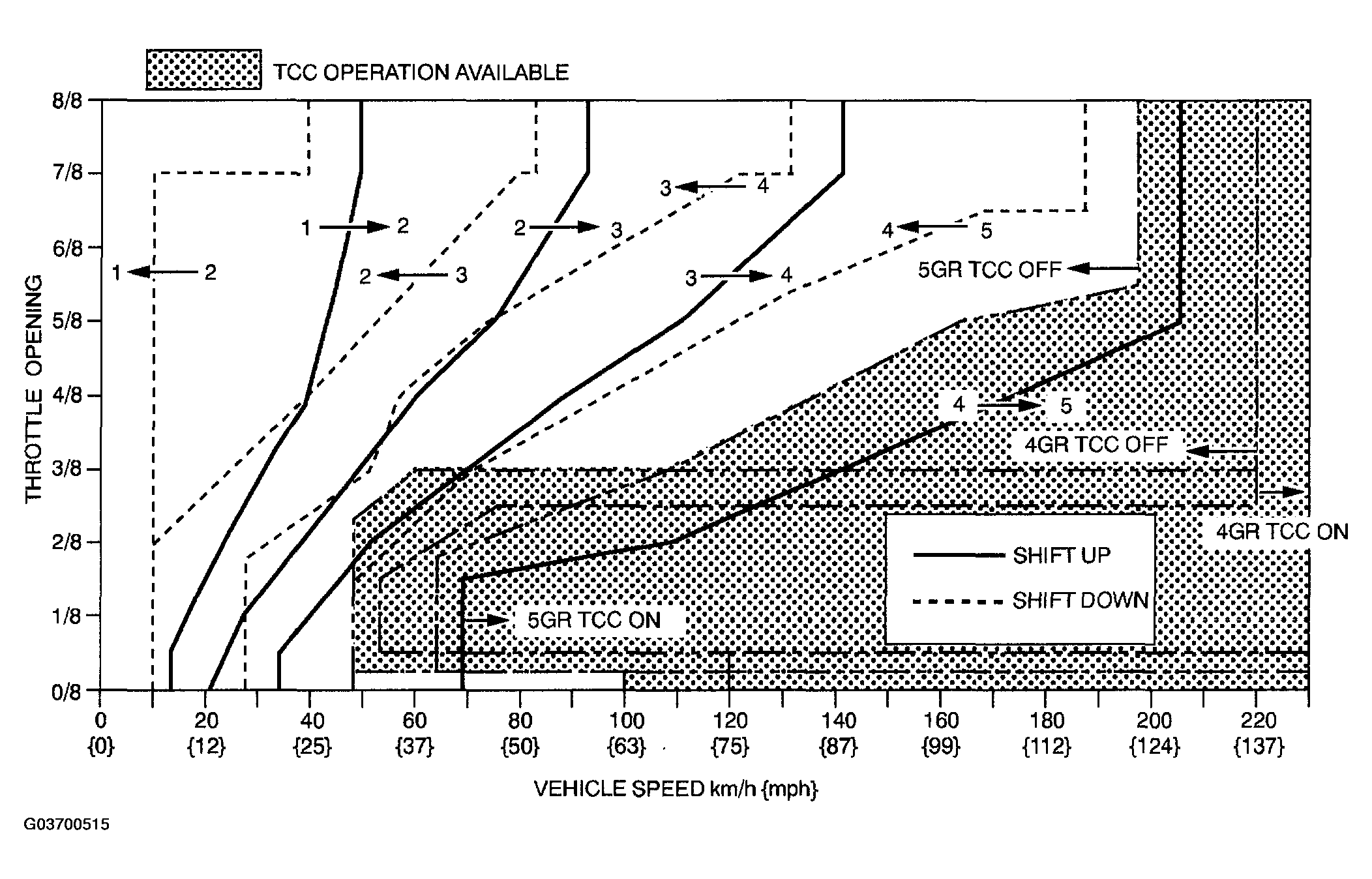

Fig 1: Typical Shift Diagram
G03700515Courtesy of MAZDA MOTORS CORP.
