Oil Seal Removal/Installation
WARNING: This page is about a different car, the 2005 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.
- Drain the ATF. (See AUTOMATIC TRANSAXLE FLUID (ATF) REPLACEMENT .)
- Remove the drive shaft and joint shaft. (See JOINT SHAFT REMOVAL/INSTALLATION .) (See DRIVE SHAFT REMOVAL/INSTALLATION )
- Remove and discard the oil seal using a screwdriver.

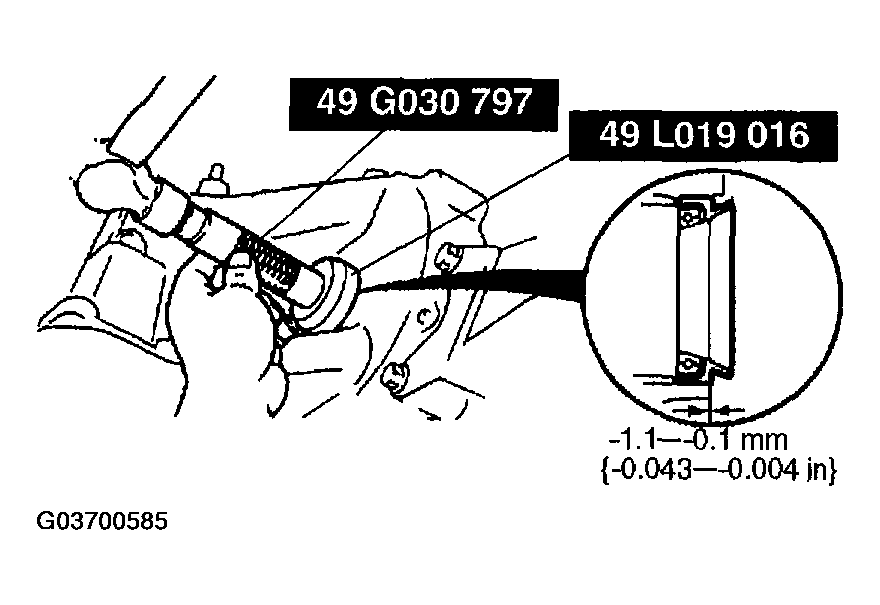

- Using the SSTs and a hammer, tap a new oil seal in evenly until the SSTs contacts the transaxle case.
- Coast the lip of the oil seal with ATF.CAUTION:
- The oil seal is easily damaged by the sharp edges of the drive shaft splines. Do not let the splines contact the oil seal.
- Install the drive shaft and joint shaft. (See JOINT SHAFT REMOVAL/INSTALLATION .) (See DRIVE SHAFT REMOVAL/INSTALLATION )
- Add ATF to the specified level. (See AUTOMATIC TRANSAXLE FLUID (ATF) REPLACEMENT .)
- Carry out the mechanical system test. (See MECHANICAL SYSTEM TEST .)
