Back flushing

WARNING: This page is about a different car, the 2005 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.

Using the power flushing equipment manufacturer's instructions, connect equipment so the flushing fluid flows in the opposite direction of normal fluid flow.
Flush oil cooler/lines until discharge fluid is clean.

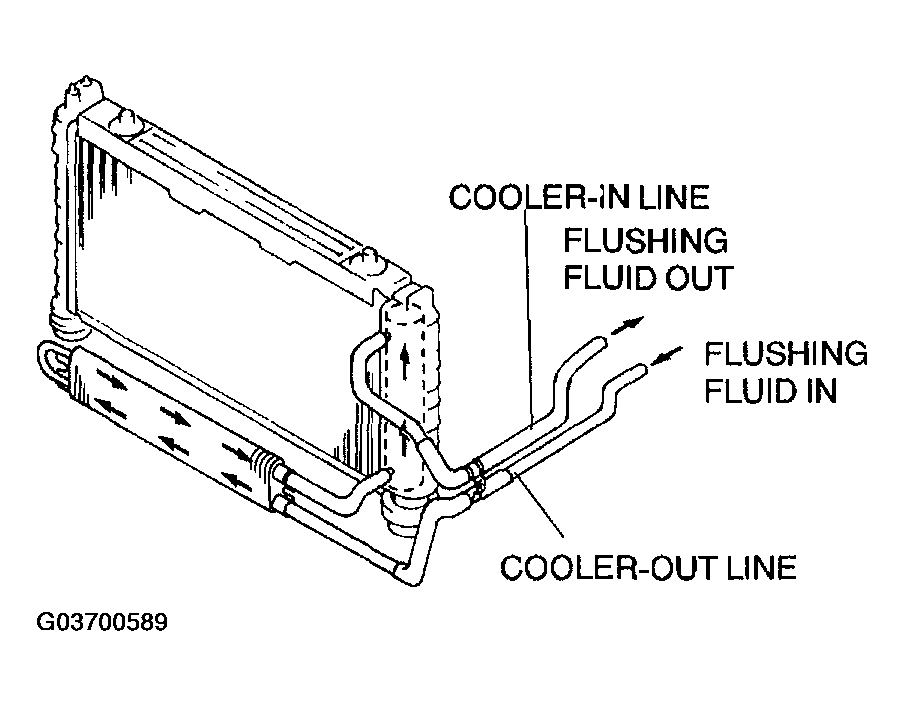

Fig 1: Back Flushing Oil Cooler/Lines
Courtesy of MAZDA MOTORS CORP.
CAUTION:
- If the cooler can not be properly flushed using recommended equipment, send the radiator out for sublet cleaning or replace.
