Transaxle Removal Note

WARNING: This page is about a different car, the 2005 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.

Loosen the SSTs (engine support) and lean the engine toward the transaxle.

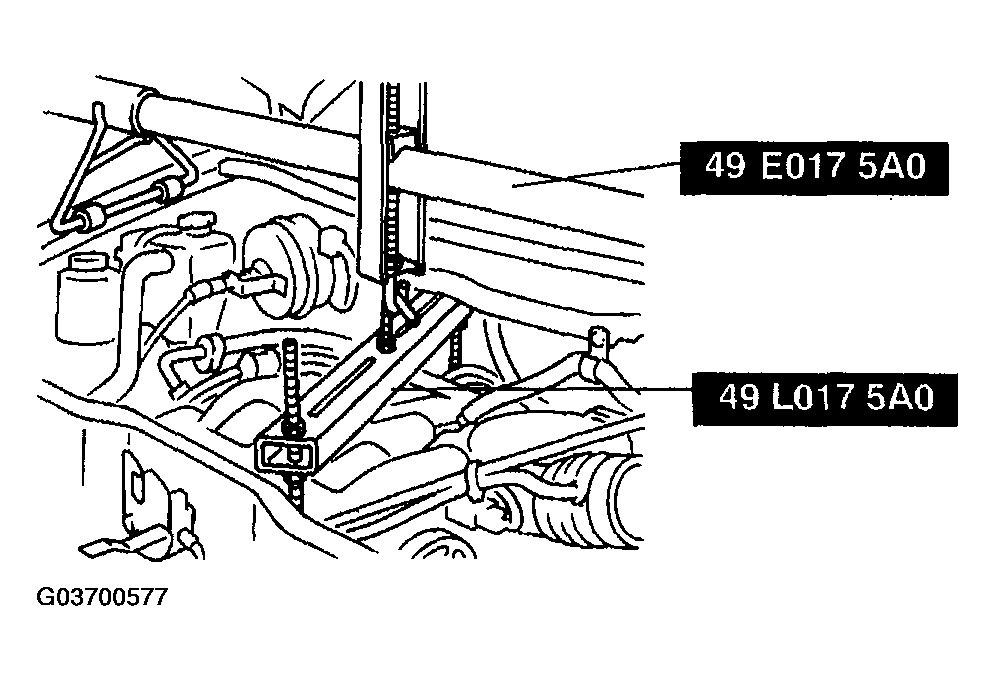

Fig 1: Loosening Engine Support And Lean Engine Toward Transaxle
Courtesy of MAZDA MOTORS CORP.
WARNING:
- Verify that the transaxle is securely supported by the jack. If the transaxle falls, serious injury or death and damage to the vehicle could result. Before removing the transaxle make sure that the jack is securely supporting it.
Support the transaxle on a jack.
Remove the transaxle mounting bolts.
Remove the transaxle.

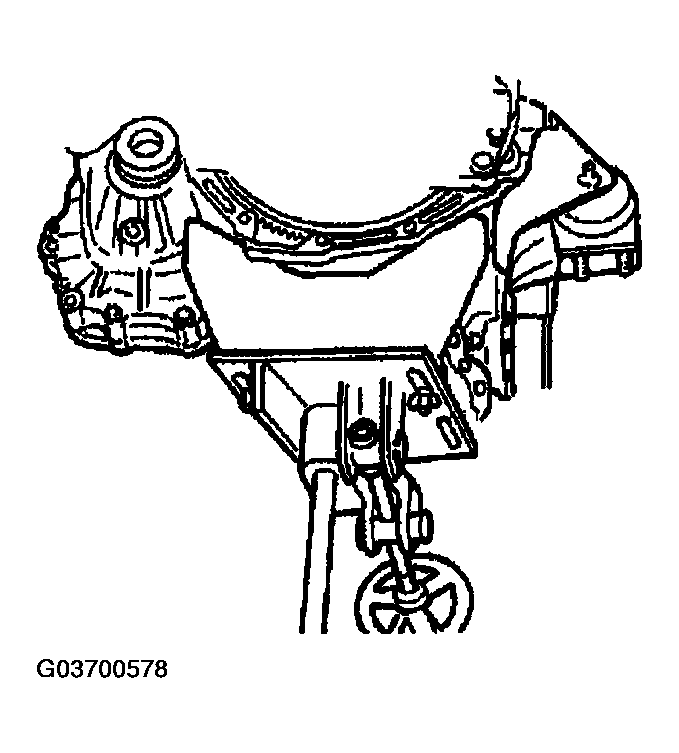

Fig 2: Supporting Transaxle On Jack
Courtesy of MAZDA MOTORS CORP.
