Transaxle Installation Note
WARNING: This page is about a different car, the 2005 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
- Verify that the transaxle is securely supported by the jack. If the transaxle should falls, serious injury or death and damage to the vehicle could result. Before removing the transaxle make sure that the jack is securely supporting it.

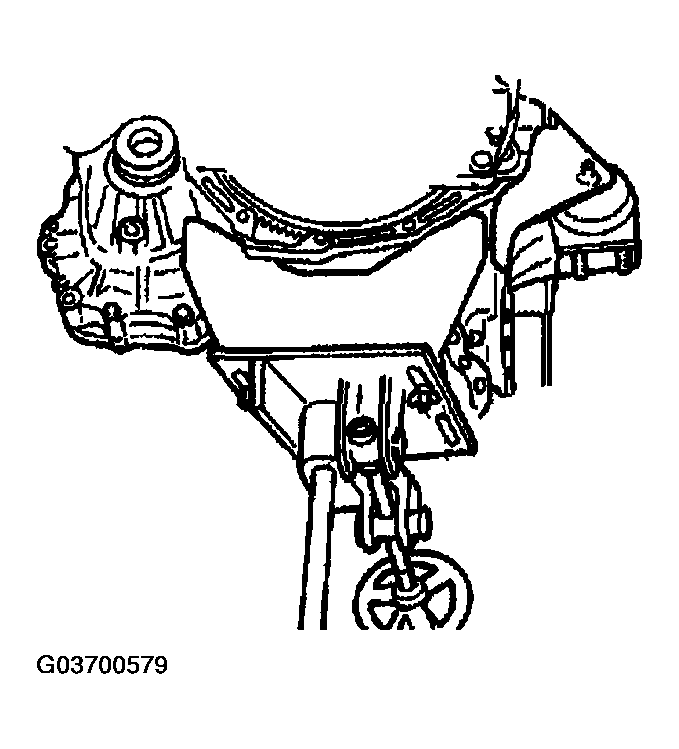

- Set the transaxle on a jack and lift it into place.
- Install the transaxle mounting bolts.
Tightening torque
- 37-52 N.m {3.8-5.3 kgf.m, 28-38 ft.lbf}
