No.4 Engine Mount Bracket Removal Note

WARNING: This page is about a different car, the 2005 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the windshield wiper link.
  2. Remove the windshield wiper motor.
  3. Support the engine using the SSTs.
  4. Remove the No.4 engine mount bracket.

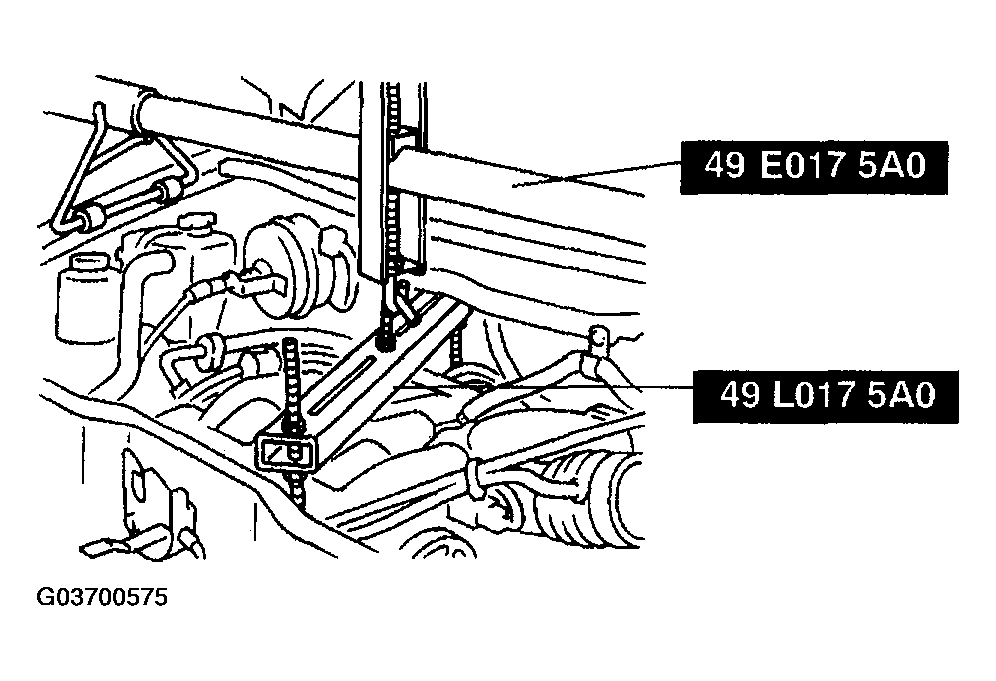

    Fig 1: Supporting Engine Using SSTs
    G03700575Courtesy of MAZDA MOTORS CORP.
