Automatic Transaxle Location Index

WARNING: This page is about a different car, the 2005 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.

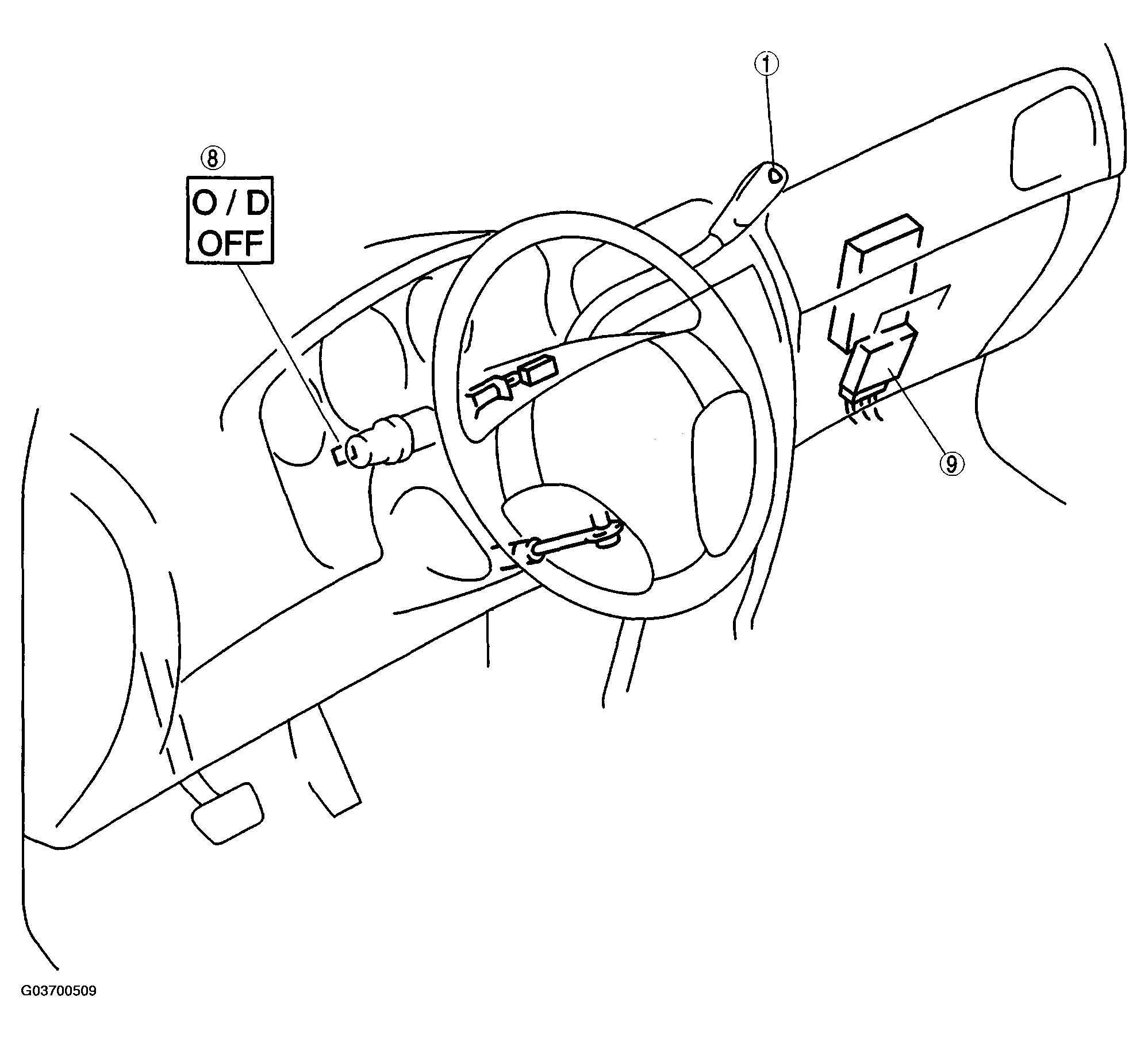

Fig 1: Locating O/D Off Switch

Courtesy of MAZDA MOTORS CORP.

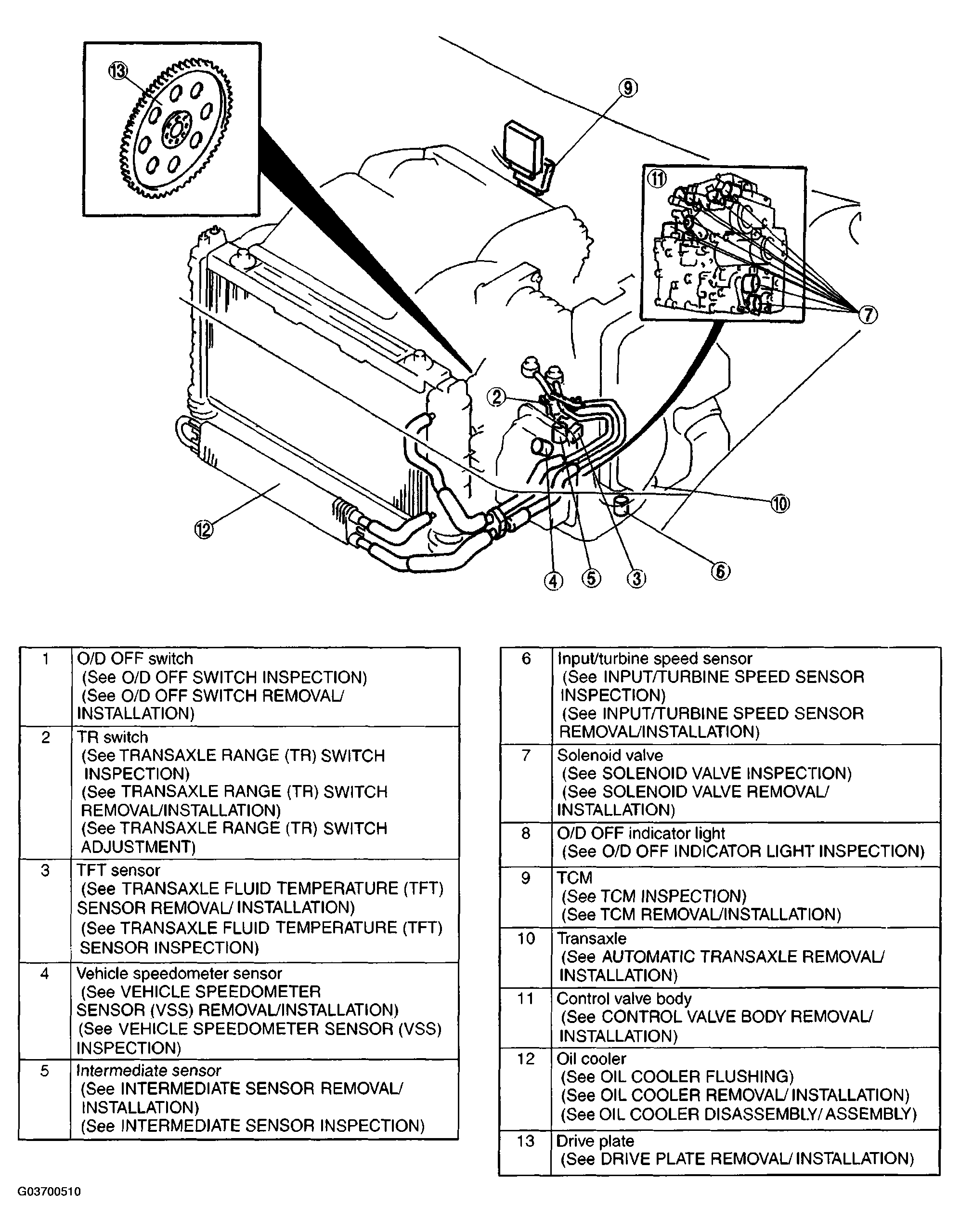

Fig 2: Identifying Automatic Transaxle Components

Courtesy of MAZDA MOTORS CORP.
