Section 413 (Automatic Transaxle [Service, Removal & Installation])
>>
Automatic Transaxle Control System Wiring Diagram
Automatic Transaxle Control System Wiring Diagram
WARNING:
This page is about a different car, the 2005 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.
See
TRANSMISSION
.

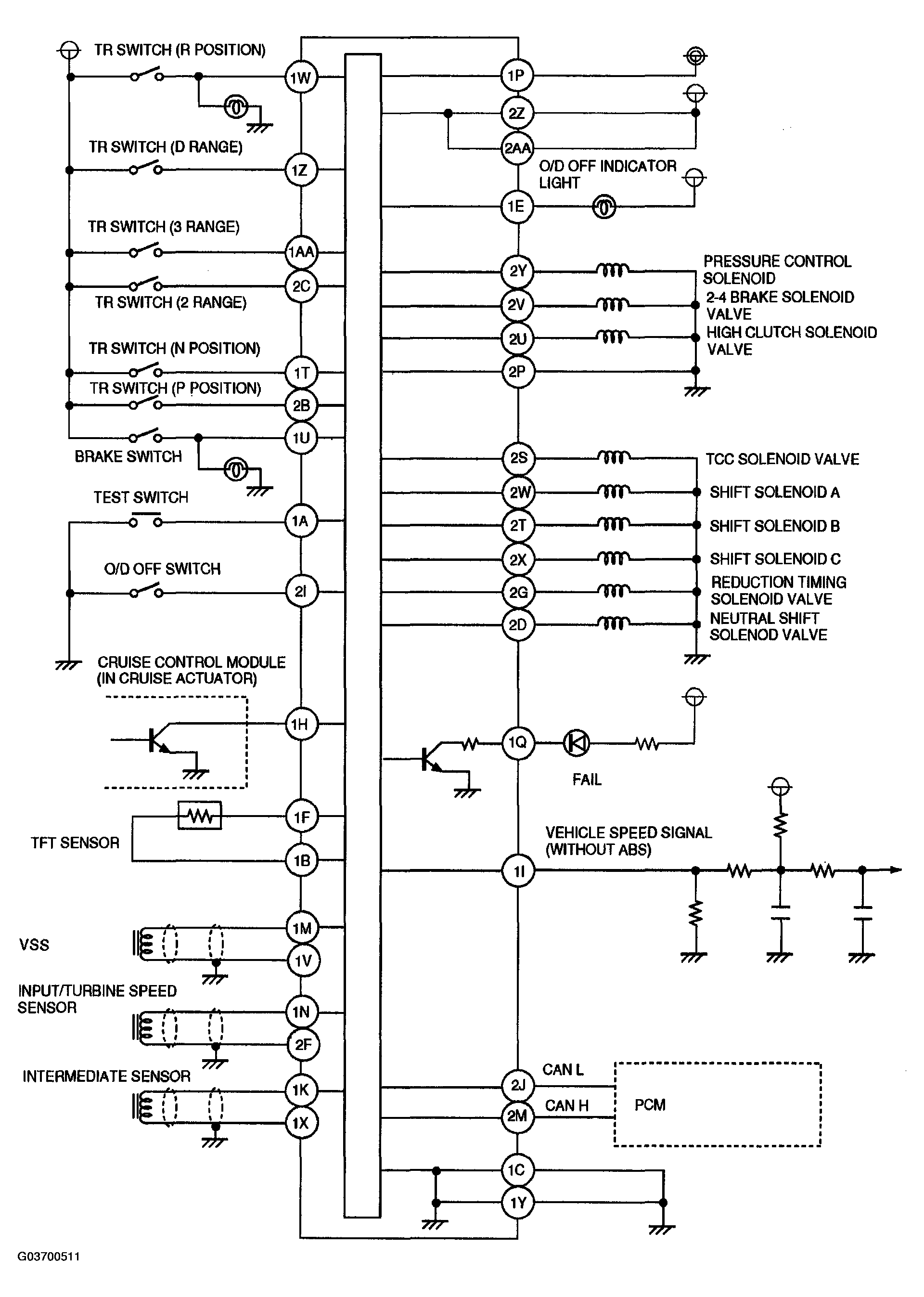

Fig 1: Automatic Transaxle Control System Wiring Diagram
Courtesy of MAZDA MOTORS CORP.
