Brake Lining Thickness Inspection
WARNING: This page is about a different car, the 2005 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.
- Remove the brake drum.

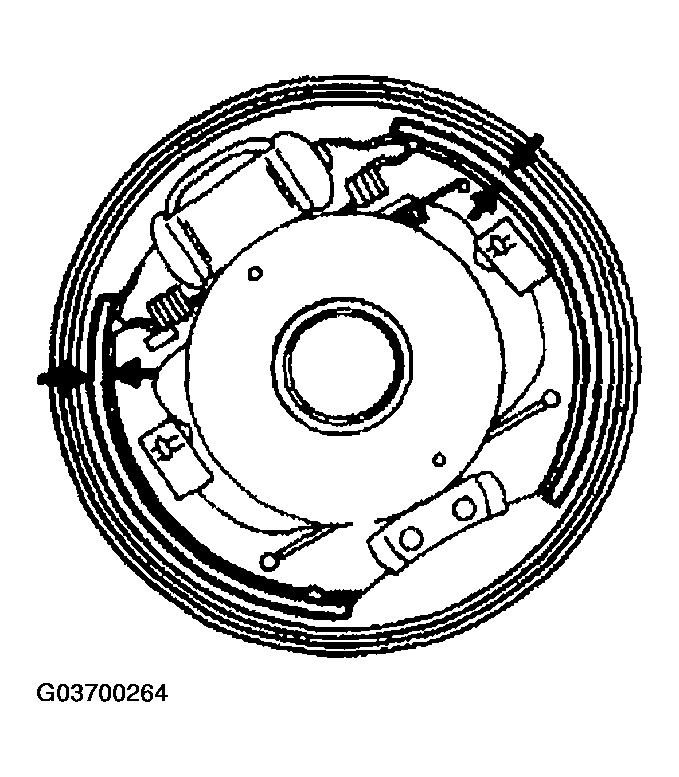

- Inspect the remaining thickness of the lining.
- Replace both left and right brake shoes if either is at or less than the minimum thickness.
Thickness
- 1.0 mm {0.04 in} min.
Courtesy of MAZDA MOTORS CORP.
