Inspection and repair procedure: Notes

WARNING: This page is about a different car, the 2005 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.

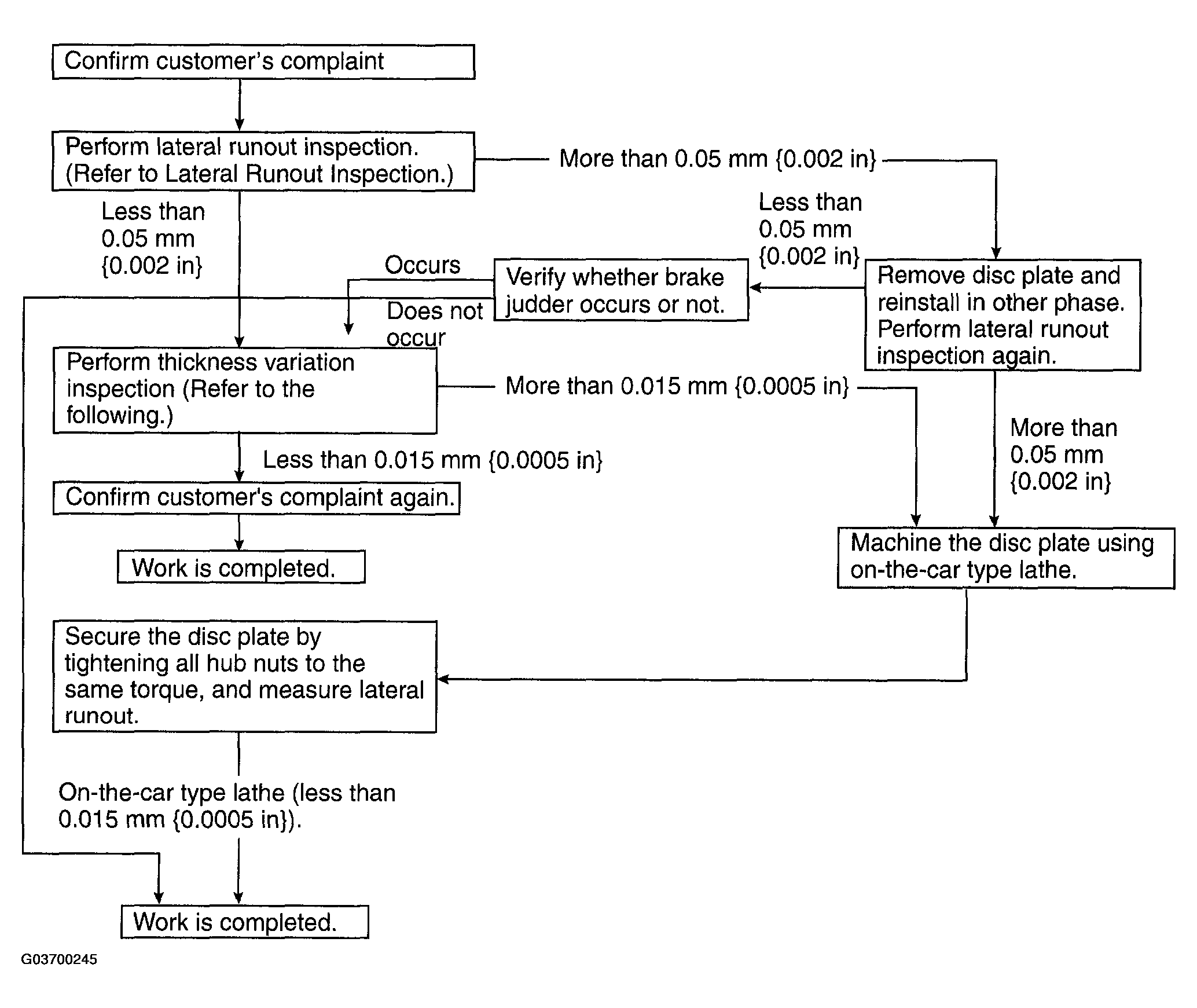

Fig 1: Front Brake Disc Inspection And Repair Procedure Chart
G03700245Courtesy of MAZDA MOTORS CORP.
