Dual Proportioning Valve (Without Abs) And Brake Pipe Joint (With Abs) Replacement: Notes

WARNING: This page is about a different car, the 2005 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the dynamic chamber. (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION .)
  2. Remove in the order indicated in the table.

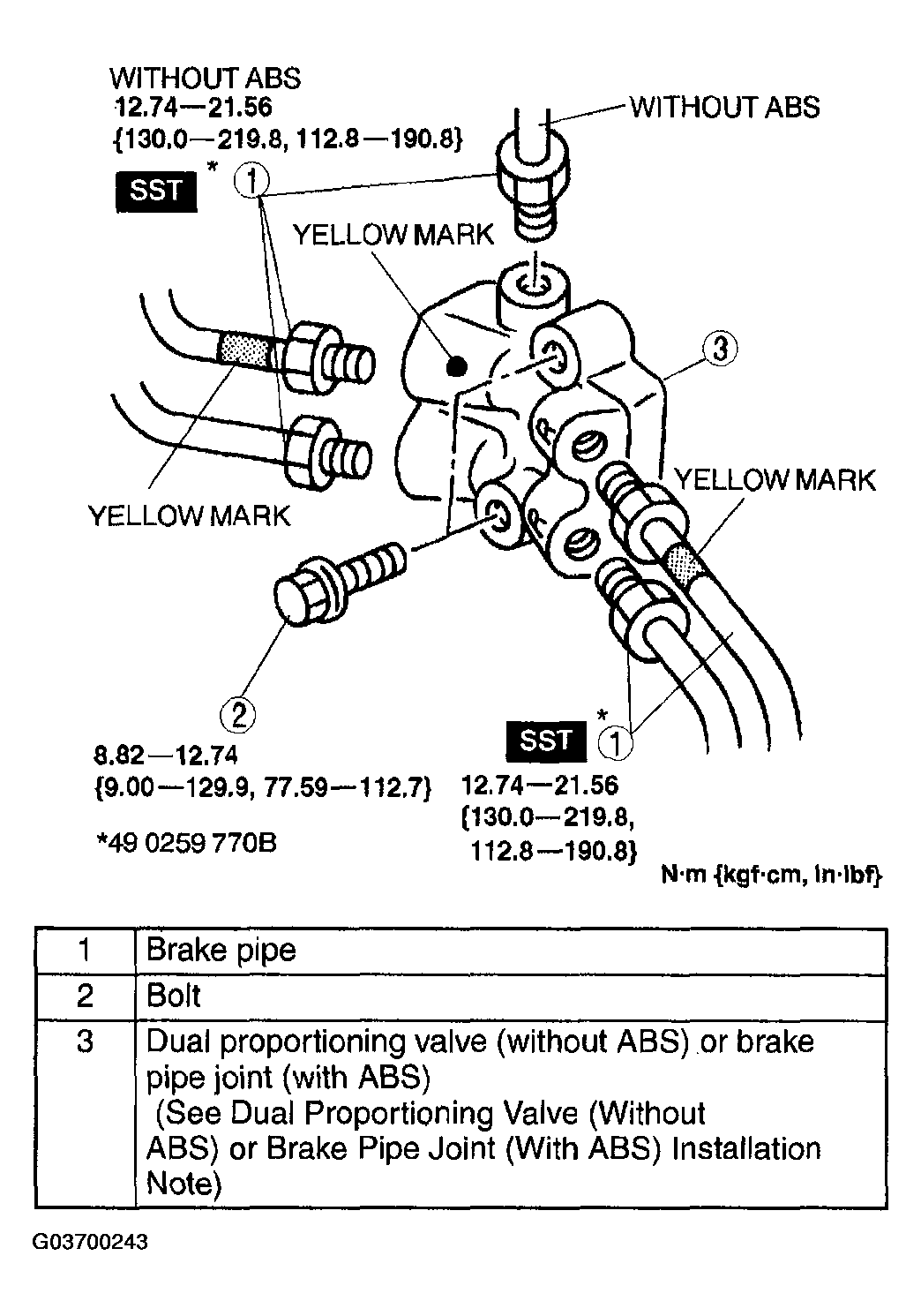

    Fig 1: Removing Dual Proportioning Valve (Without ABS) And Brake Pipe Joint (With ABS) - With Torque Specifications
    G03700243Courtesy of MAZDA MOTORS CORP.
  3. Install in the reverse order of removal.
