Brake Pedal Play Inspection
WARNING: This page is about a different car, the 2005 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.
- Depress the pedal a few times to eliminate the vacuum in the system.
- Remove the spring pin, verify that the holes in the fork and in the pedal are aligned, and reinstall the pin. (See BRAKE PEDAL REMOVAL/INSTALLATION .)

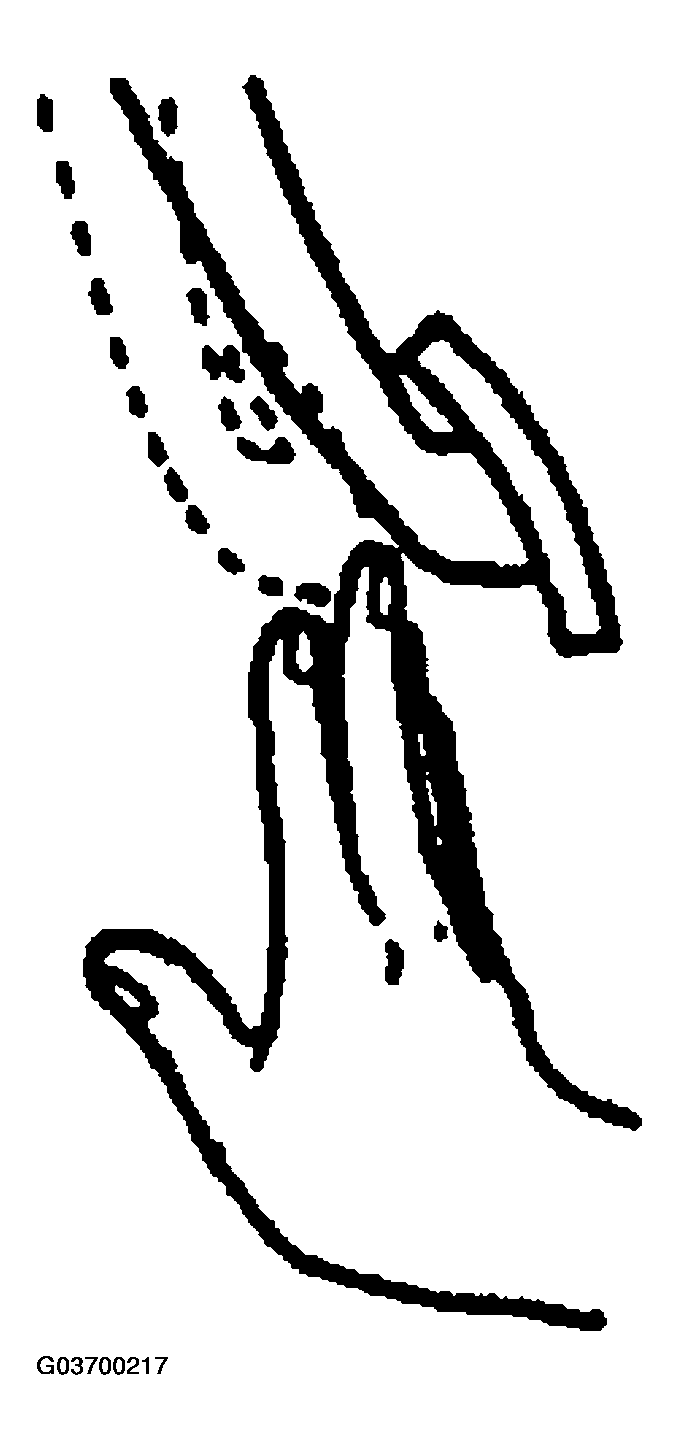

- Gently depress the pedal by hand until resistance is felt, and check the pedal play.
Pedal play
- 7.8-12.0 mm {0.31-0.47 in}
