Brake Pedal Height Adjustment
WARNING: This page is about a different car, the 2005 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.

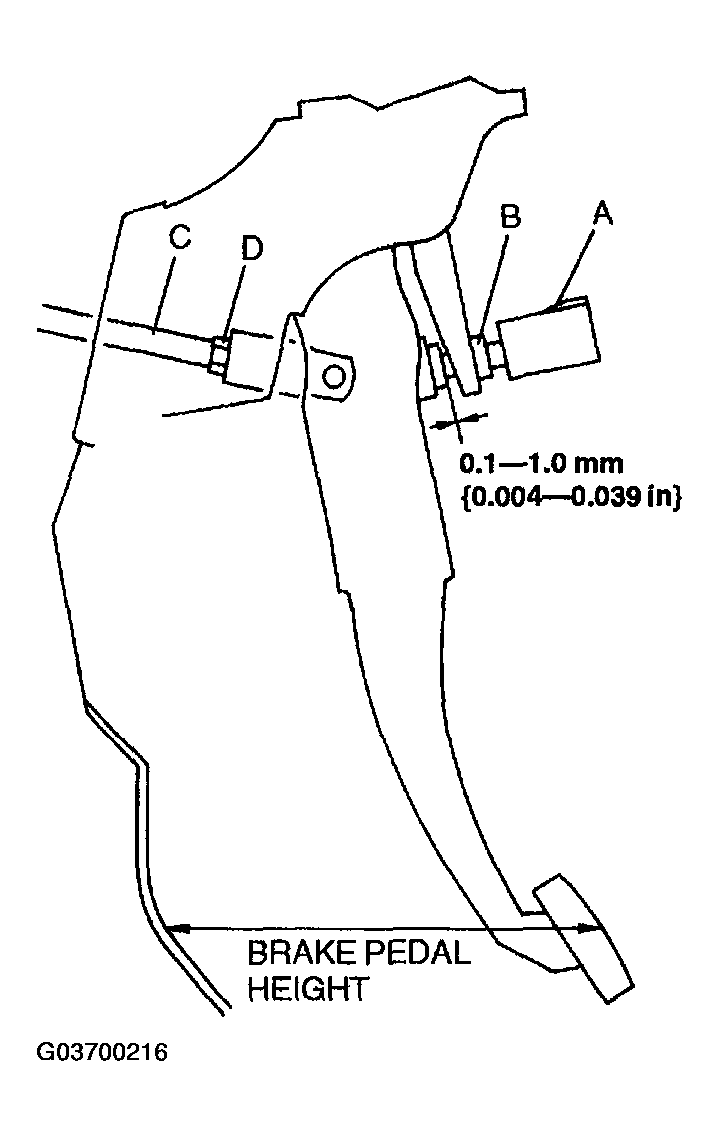

- Disconnect the brake switch connector.
- Loosen locknut B and turn switch A until it does not contact the pedal.
- Loosen locknut D and turn rod C to adjust the height.
- Tighten the bolt with locknut B so that clearance between the bolt for the brake light switch A and pedal stopper is within the specification.
Specification
- 0.1-1.0 mm {0.004-0.039 in}
Tightening torque
- 13.7-17.6 N.m {140-179 kgf.cm, 122-155 in.lbf}
- Connect the brake switch connector.
- After adjustment, inspect the pedal play and the brake light operation.
