Valve Body: Removal

WARNING: This page is about a different car, the 2002 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect negative battery cable. Disconnect positive battery cable and remove battery from vehicle. Remove the battery tray and battery tray bracket. See Figure . Remove the air cleaner assembly. See Figure .
  2. Raise and support vehicle. Drain transmission fluid from transaxle. See DRAINING & REFILLING  under LUBRICATION. Remove the oil cooler hoses and oil cooler pipes. See OIL COOLER HOSES & PIPES  .
  3. Remove the heater pipe, hoses and bracket. Drain coolant from vehicle. See COOLING SYSTEM BLEEDING in 2.5L V6 article in ENGINES. Remove the side cover. See Fig 1 . Disconnect the solenoid valve harness connectors, then remove harness clips. Remove the valve body. See Fig 2 .

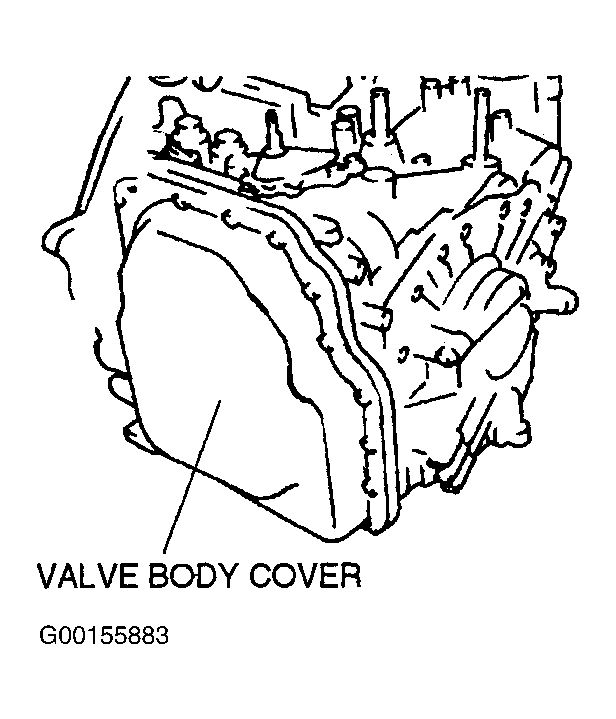

Fig 1: Identifying Side Cover
G00155883Courtesy of MAZDA MOTORS CORP.
Fig 2: Removing & Installing Valve Body
G00155884Courtesy of MAZDA MOTORS CORP.
