Drive Shaft Pre-Inspection

WARNING: This page is about a different car, the 2005 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.
  1. Inspect the dust boot on the drive shaft for cracks, damage, leaking grease, and looseness in the boot band.

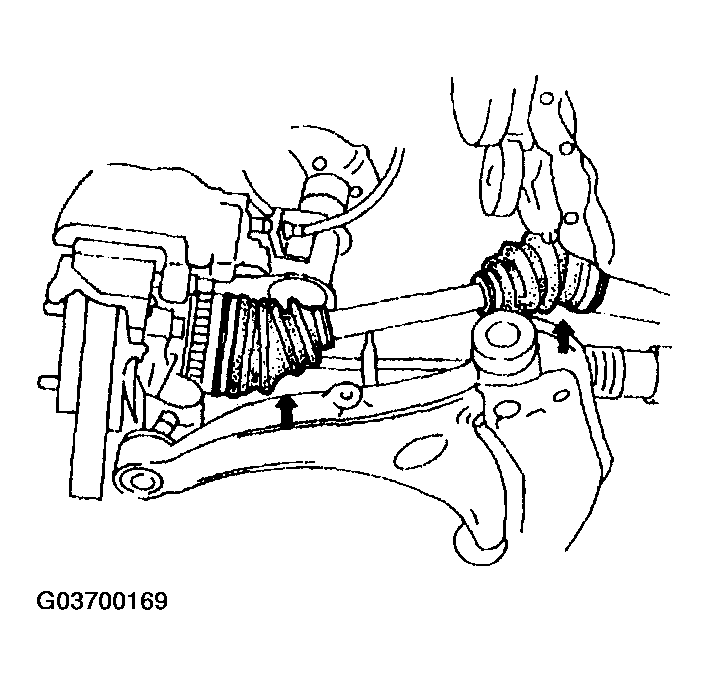

    Fig 1: Inspecting Dust Boot
    G03700169Courtesy of MAZDA MOTORS CORP.
  2. Inspect the drive shaft for bends, cracks, and wear in the joint or splines.
    • Repair or replace the drive shaft or boot/band if necessary.
