Boot Band (Transaxle Side) Disassembly Note

WARNING: This page is about a different car, the 2005 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.
  1. Pry up the locking clips by using a screwdriver.
  2. Pull back the end of the band.

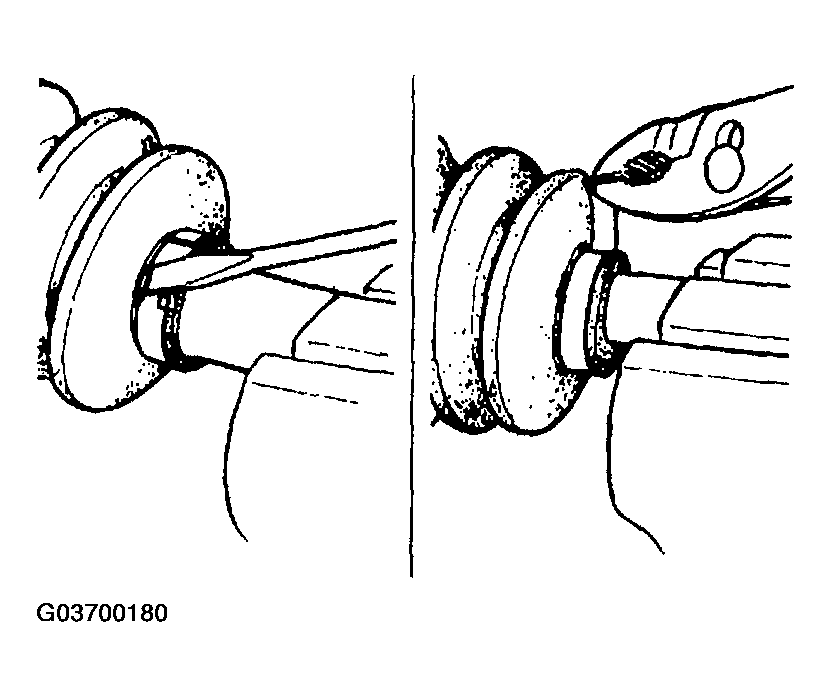

    Fig 1: Removing Locking Clips & Boot Band
    G03700180Courtesy of MAZDA MOTORS CORP.
