Wheel Hub Component Removal Note

WARNING: This page is about a different car, the 2005 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.

Remove the wheel hub component using the SSTs .

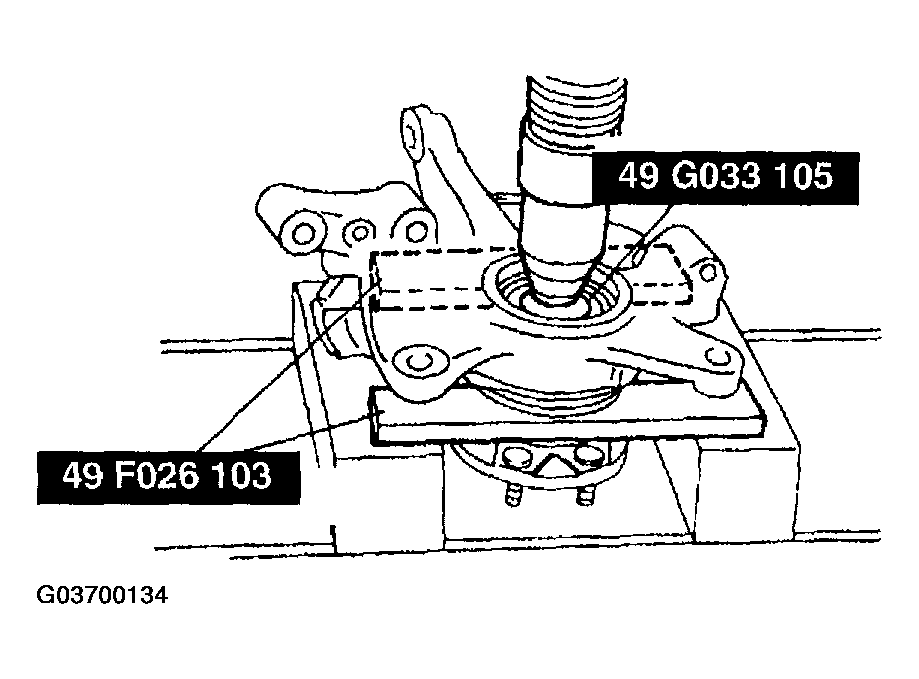

Fig 1: Removing Wheel Hub Component Using SST
Courtesy of MAZDA MOTORS CORP.
If the bearing inner race remains on the front wheel hub component, grind a section of the bearing inner race until approx. 0.5 mm {0.02 in} remains. Then remove it using a chisel.

Fig 2: Grinding Section Of Bearing Inner Race
Courtesy of MAZDA MOTORS CORP.
