Wheel Bearing Play Inspection

WARNING: This page is about a different car, the 2005 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.

Position a dial indicator against the wheel hub.
Push and pull the wheel hub by hand in the axial direction and measure the wheel bearing play.
Maximum wheel bearing play
1. 0.05 mm {0.002 in}

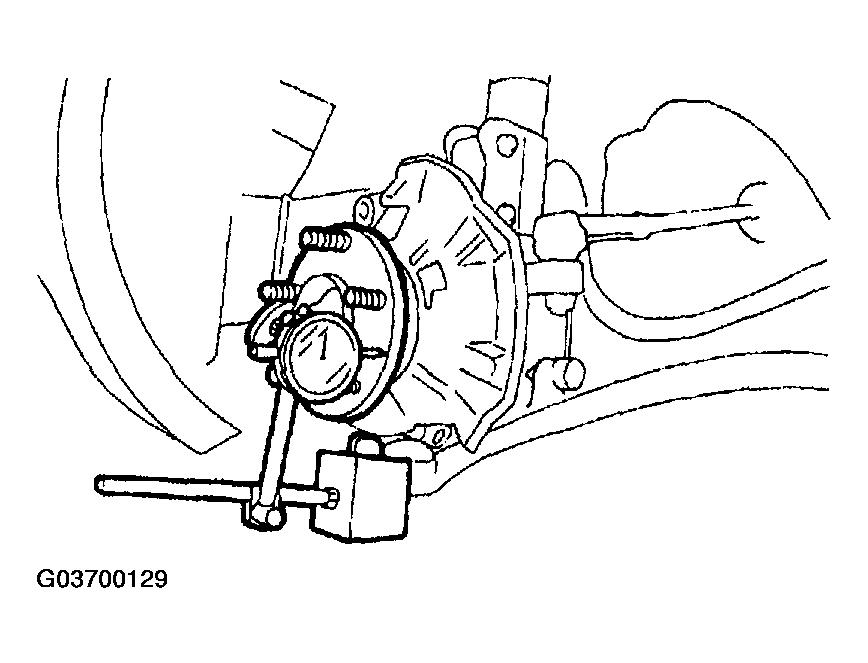

Fig 1: Measuring Wheel Bearing Play
Courtesy of MAZDA MOTORS CORP.
If the bearing play exceeds the specification, replace and tighten the locknut to the specified torque and retest.
- Replace the wheel bearing if necessary.
