Primary Coil Winding
WARNING: This page is about a different car, the 2005 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect the ignition coil connector.

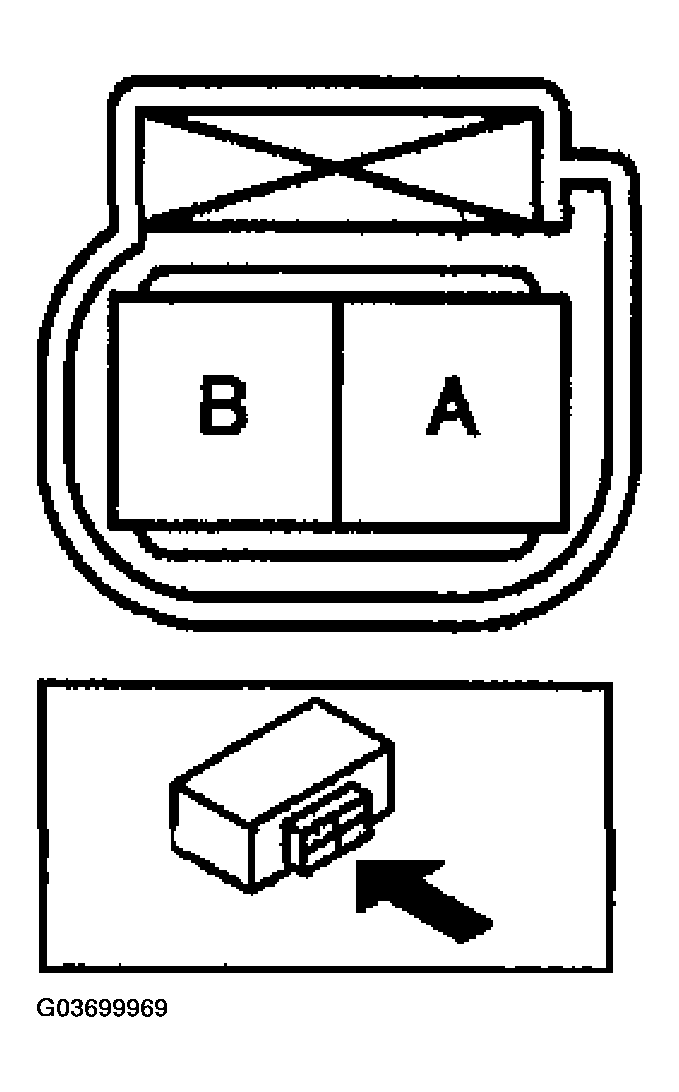

- Measure the resistance between the following terminals using an ohmmeter:
- A and B
- If not as specified, replace the ignition coil.
Resistance (Reference)
- 0.45-1.15 ohms [25 °C {77 °F}]
Courtesy of MAZDA MOTORS CORP.
