Section 40 (Automatic Transmission - Diagnosis)
>>
Trouble Shooting
>>
Brake, Clutch & Solenoid Applications
Brake, Clutch & Solenoid Applications
WARNING:
This page is about a different car, the 2002 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.

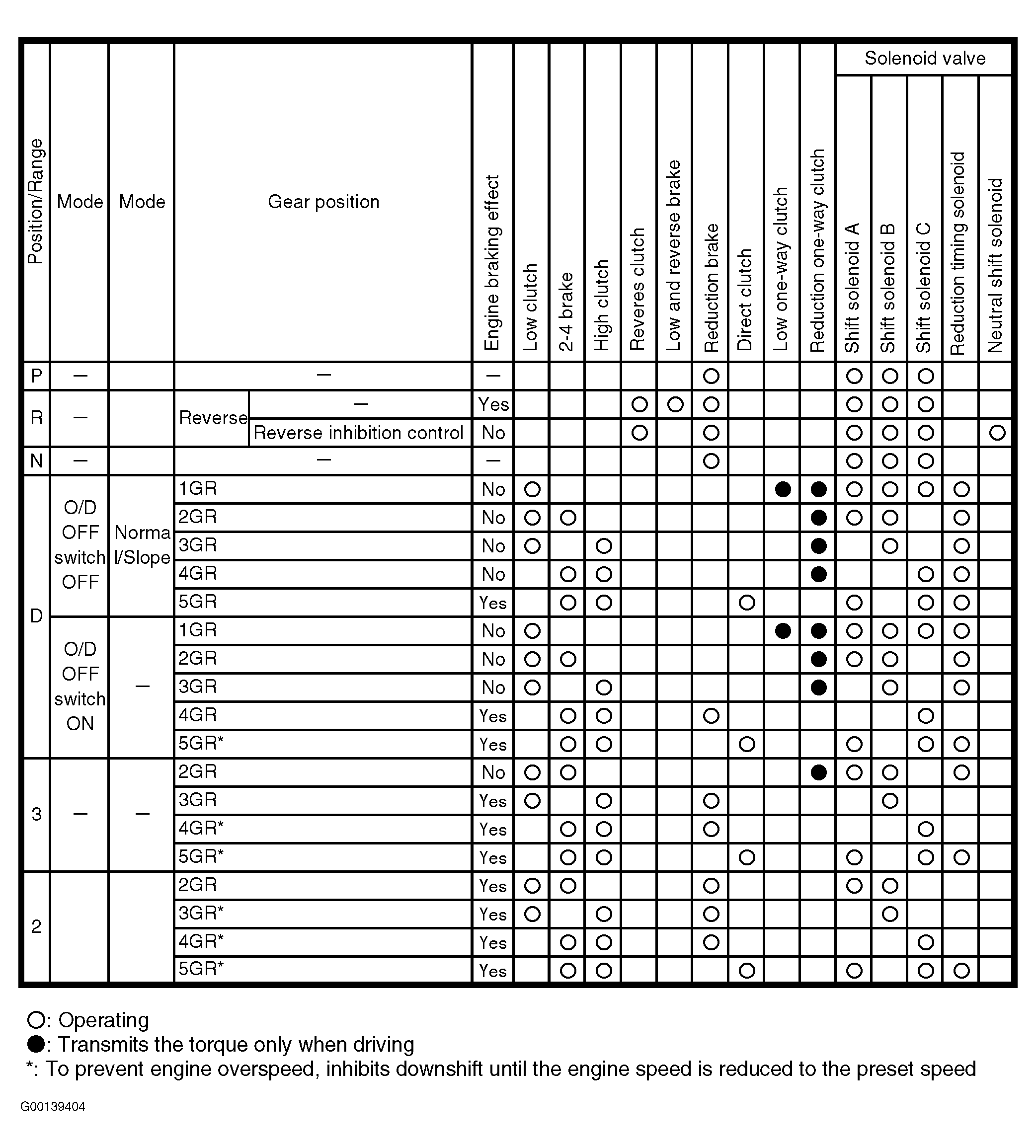

Fig 1: Brake, Clutch & Solenoid Application Table
Courtesy of MAZDA MOTORS CORP.
