Stall Speed Evaluation

WARNING: This page is about a different car, the 2002 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.

For diagnosis of stall speed results, see Fig 1.

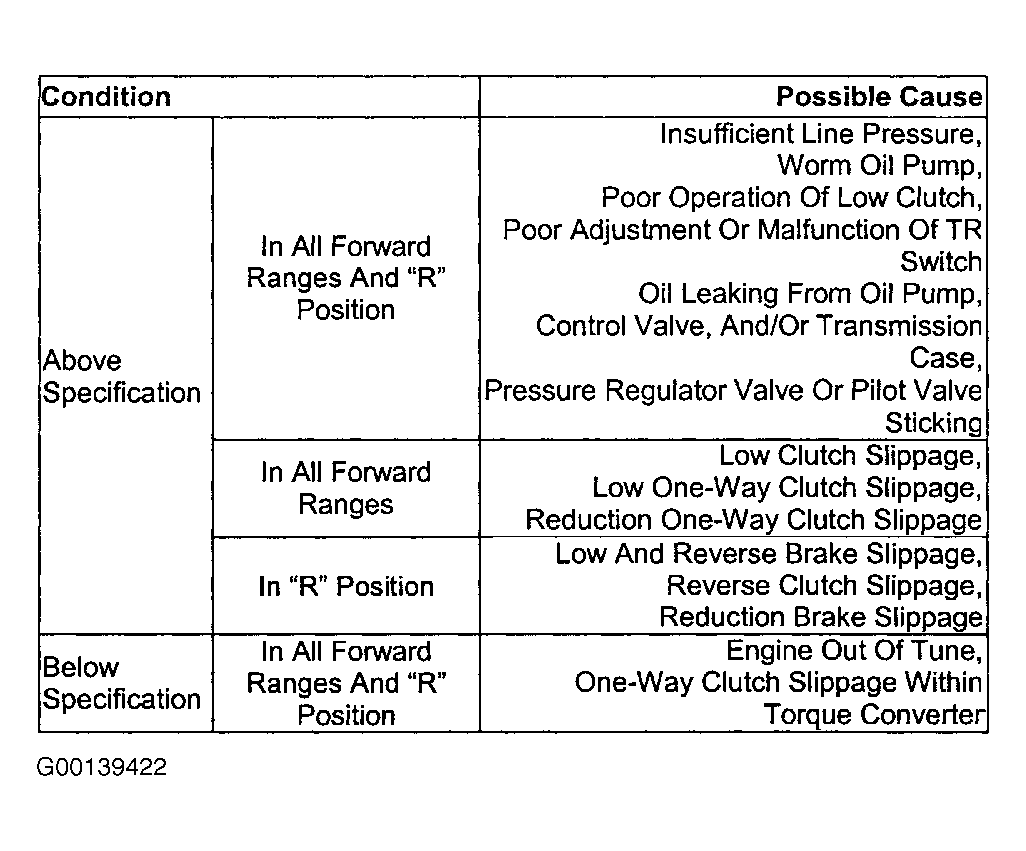

Fig 1: Stall Speed Diagnostic Table

Courtesy of MAZDA MOTORS CORP.
