Operation Inspection

WARNING: This page is about a different car, the 2002 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Do not apply battery positive voltage to connector terminals for more than 3 seconds.

Disconnect the negative battery cable. Disconnect transaxle 10-pin connector No. 1. Apply battery positive voltage to solenoid terminals "A" through "I" and battery negative voltage to ground. See WIRING DIAGRAMS . Verify that operating sound is heard from each solenoid. If operating sound is not heard, inspect the transaxle harness. If the transaxle harness is okay, replace suspect solenoid.

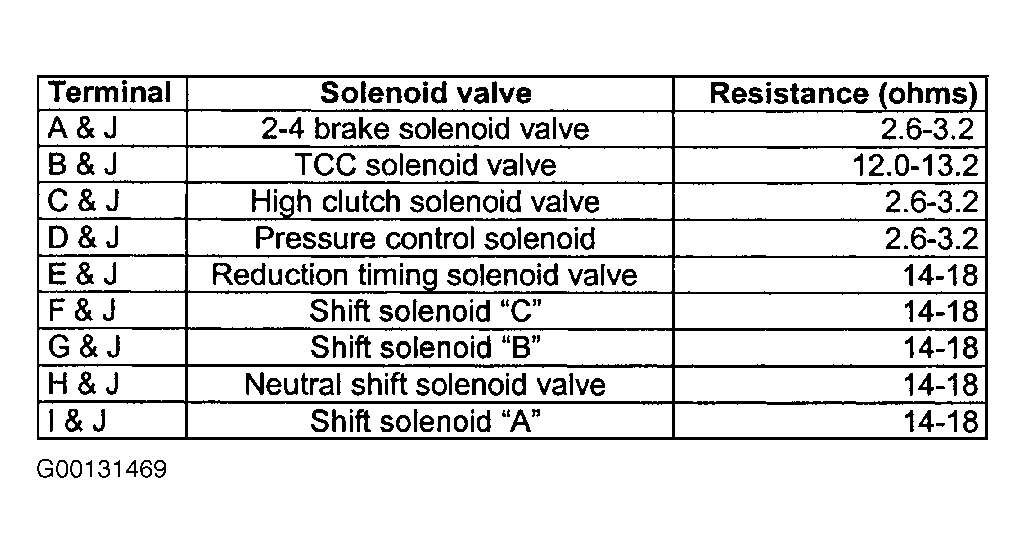

Fig 1: Transaxle Solenoid Resistance Chart

Courtesy of MAZDA MOTORS CORP.

Fig 2: Testing High Clutch, Pressure Control & 2-4 Brake Solenoid Valves

Courtesy of MAZDA MOTORS CORP.

Fig 3: Testing Neutral Shift, Reduction Timing &, "A", "B" & "C" Shift Solenoid Valves

Courtesy of MAZDA MOTORS CORP.

Fig 4: Testing TCC Solenoid Valve

Courtesy of MAZDA MOTORS CORP.
