Purge Solenoid Valve Removal/Installation: Notes

WARNING: This page is about a different car, the 2005 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable.
  2. Remove in the order indicated in the table.

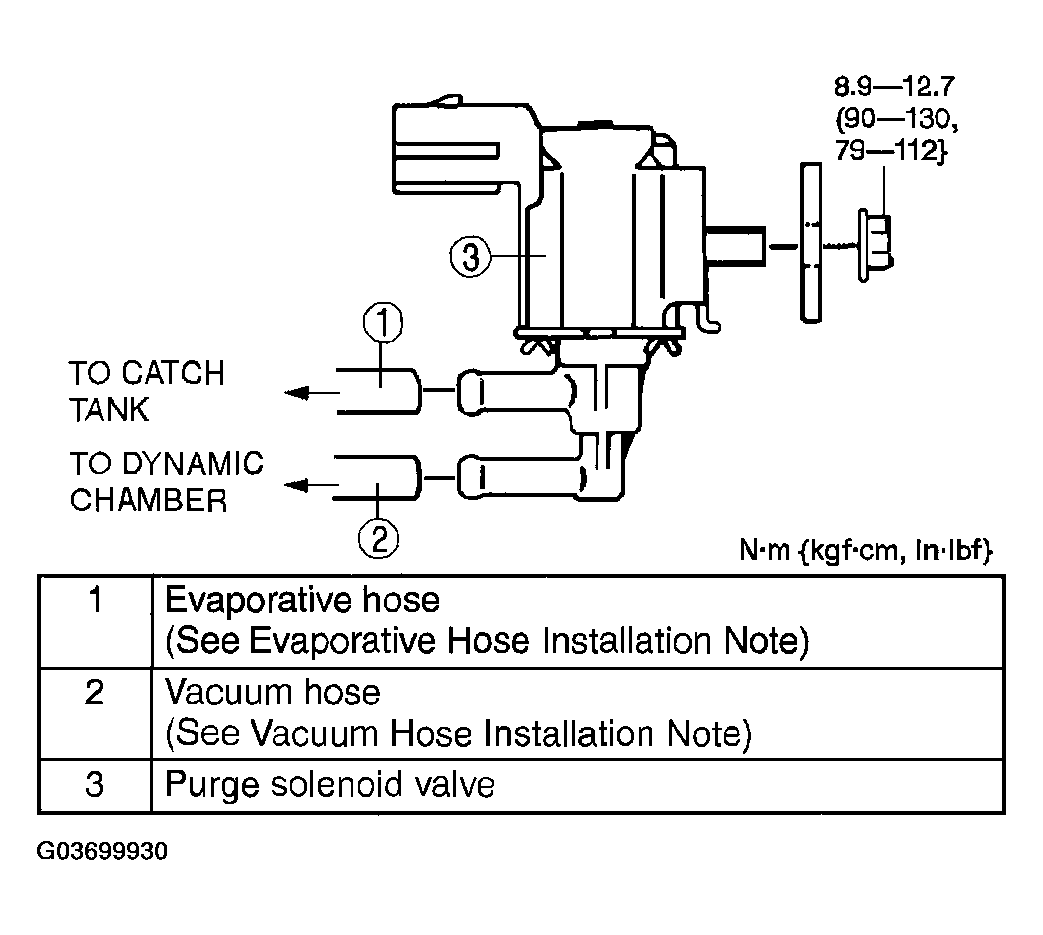

    Fig 1: Removing Purge Solenoid Valve Components In Order
    G03699930Courtesy of MAZDA MOTORS CORP.
  3. Install in the reverse order of removal.
