Leakage Inspection

WARNING: This page is about a different car, the 2005 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.
  1. Perform the following SST  (Evaporative Emission System Tester 134-01049) self-test:
    NOTE:
    • If the tester does not work correctly during self-test, refer to the tester operators manual for more detailed procedures.
    1. Verify the gas cylinder valve is closed and the control valve located on the tester is in the TEST position. All tester display should be off at this time.
    2. Connect the long hose (part of SST  ) to the tester.
    3. Connect the manifold assembly (part of SST  ) to the long hose as shown.
      Fig 1: Connecting Manifold Assembly To Long Hose
      G03699918Courtesy of MAZDA MOTORS CORP.
    4. Open the gas cylinder valve and verify the gas cylinder regulator left gauge reads 10 to 12 psi  (preset at factory).
      • If not, refer to the tester operators manual to contact tester manufacturer.
    5. Press the ON/OFF switch to turn on the SST  and make sure the left display reads 0.0.
    6. Turn the control valve on the tester to the FILL position.
    7. Verify the left display reading is within 13.9 to 14.0 inches  of water.
      • If not, adjust the pressure using the regulator knob located on the right side of the tester.
    8. Turn the control valve to TEST position and press the START switch.
    9. After the 2-minute  countdown (left display) is completed, the right display shows the total pressure loss for that period, A 0.5 inch  of water loss is acceptable on the self-test.
      • If the loss is more than 0.5 inch of water, do one or more self-test. If the failed test repeats, check for leak using the ultrasonic leak detector (part of SST  ).
  2. Press the RESET switch to set the left display reading to 0.0.
  3. Connect the fuel cap receiver assembly (part of SST  ) to the manifold assembly and fuel-filler cap from the vehicle.
    • If the fuel-filler cap is not a genuine part, replace it.

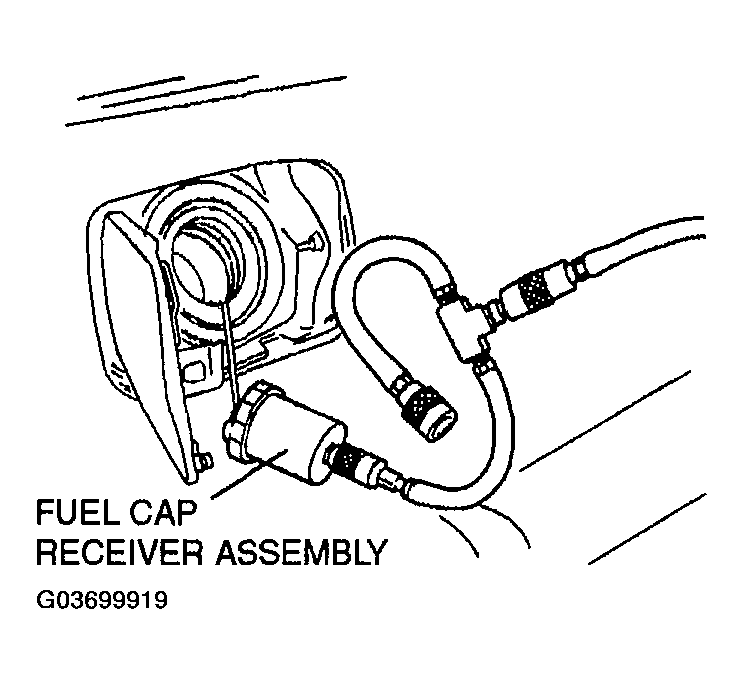

    Fig 2: Connecting Fuel Cap Receiver Assembly To Manifold Assembly & Fuel-Filler Cap From Vehicle
    G03699919Courtesy of MAZDA MOTORS CORP.
  4. Turn the control valve to the FILL position.
  5. Wait ( maximum 20 seconds  ) until the left display reads 13.9 to 14  inches of water.
    • If the reading is slightly below, adjust it using the regulator knob.
    • If the reading is far below, the fuel-filler cap has leak. Replace it.
  6. Turn the control valve to the TEST position and press the START switch.
  7. After the 2-minute  countdown (left display) is completed, check the test result (the failed/passed light on the tester).
    • If the green light turns on, the fuel-filler cap is OK.
    • If the red light turns on, the fuel-filler cap has leakage. Replace it.
  8. Close the gas cylinder valve.
  9. Turn the control valve to the FILL position.
  10. Press the ON/OFF switch to turn off the tester.
