Evaporative Emission (EVAP) Control System Diagram
Evaporative Emission (EVAP) Control System Diagram
WARNING:
This page is about a different car, the 2005 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.

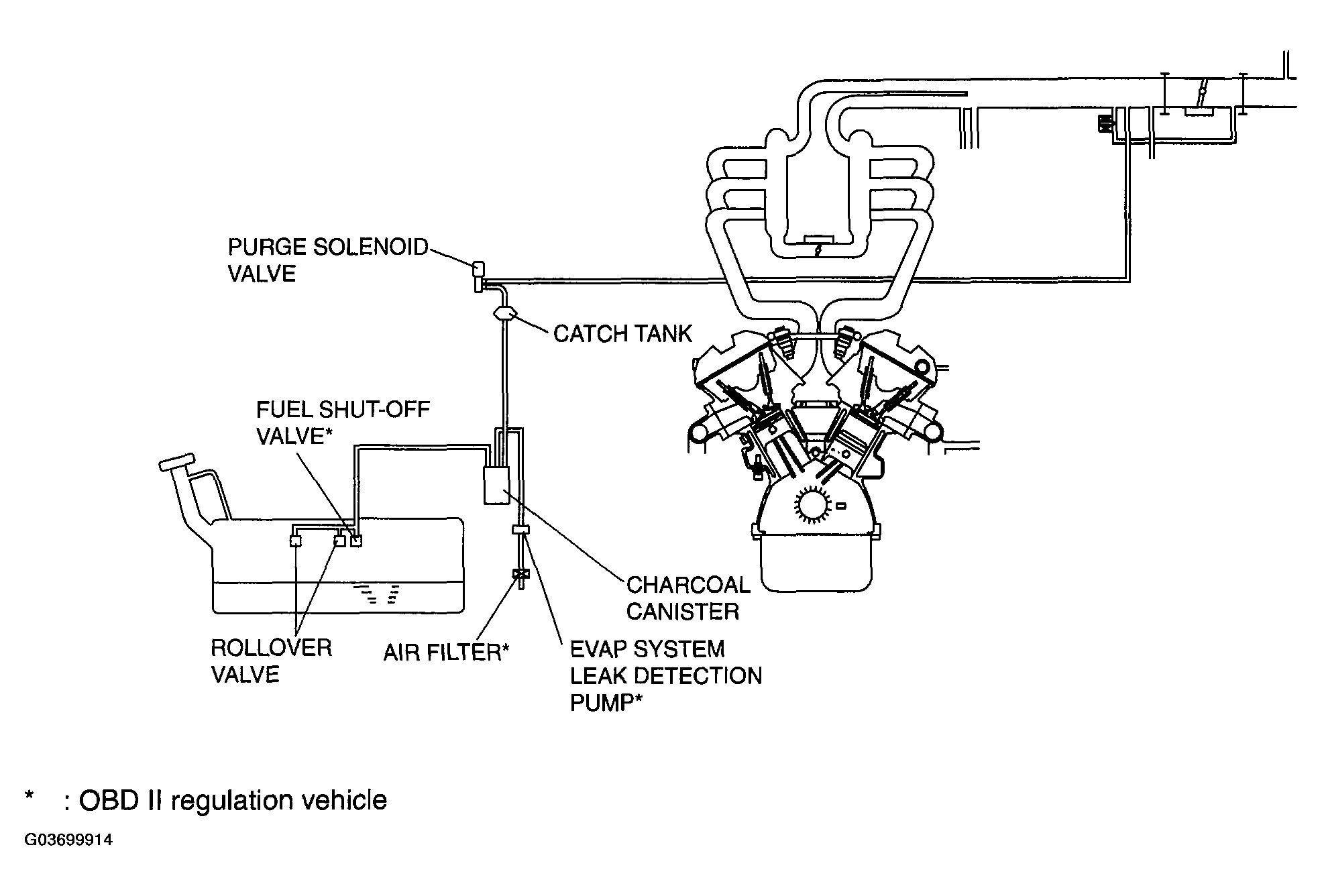

Fig 1: Identifying Evaporative Emission (EVAP) Control System Diagram
Courtesy of MAZDA MOTORS CORP.
