Engine Room Side
WARNING: This page is about a different car, the 2005 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.
- Raise the rear of the vehicle and support it with safety stands.

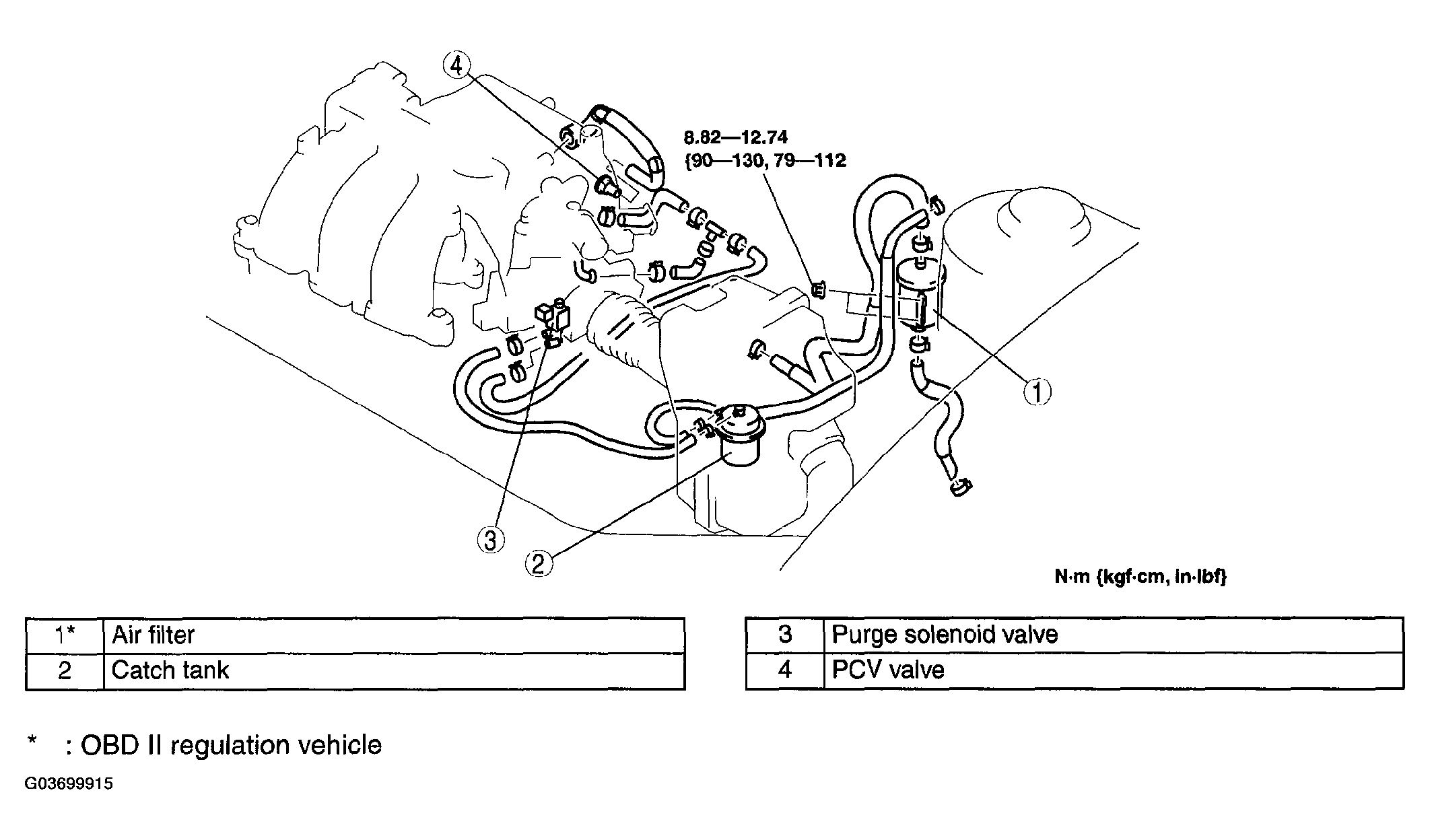

- Remove in the order indicated in the table.
- Install in the reverse order of removal.
Courtesy of MAZDA MOTORS CORP.
