Exhaust Manifold (RH) Installation Note

WARNING: This page is about a different car, the 2005 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.

Tighten the exhaust manifold installation nuts in the order shown.

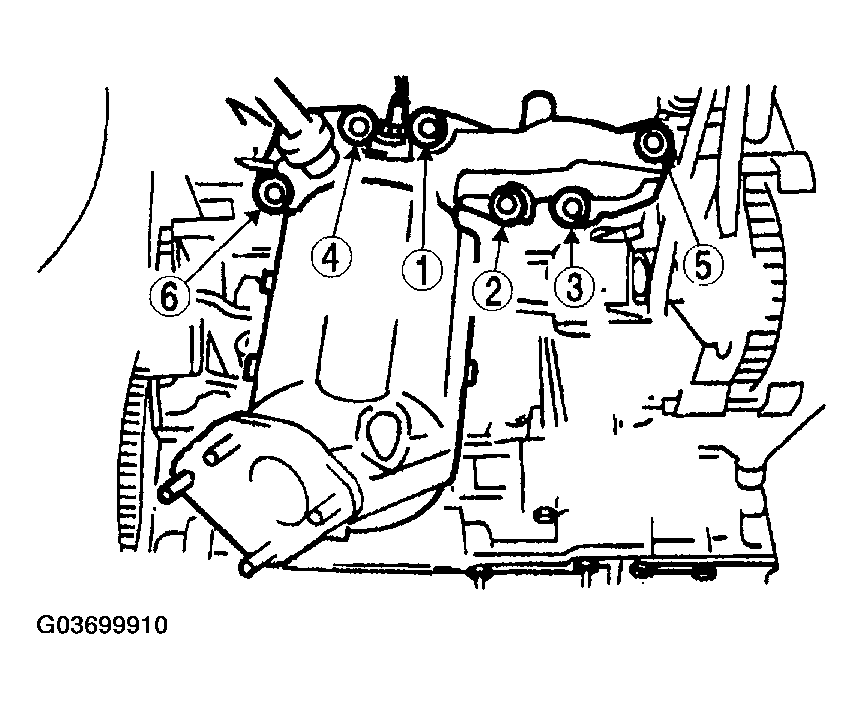

Fig 1: Tightening Exhaust Manifold (RH) Nuts In Order
Courtesy of MAZDA MOTORS CORP.
