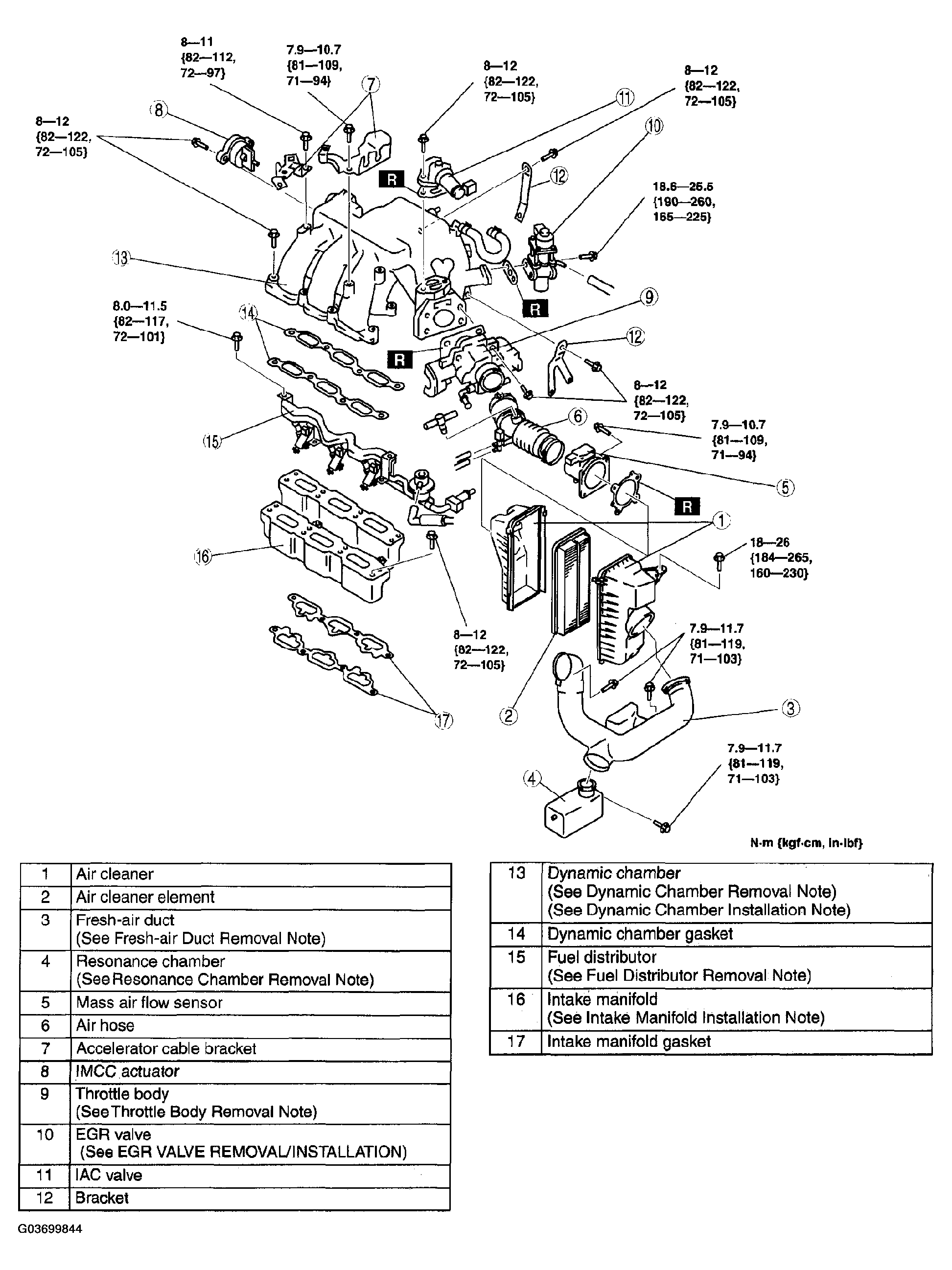

Intake-Air System Removal/Installation: Notes
WARNING: This page is about a different car, the 2005 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
- When the engine and intake-air system are hot, they can badly burn. Turn off the engine and wait until they are cool before removing the intake-air system.
- Fuel vapor is hazardous. It can easily ignite, causing serious injury and damage. Always keep sparks and flames away from fuel.
- Fuel line spills and leakage are dangerous. Fuel can ignite and cause serious injuries or death and damage. Fuel can also irritate skin and eyes, to prevent this, always complete the "Fuel Line Safety Procedure". (See FUEL LINE SAFETY PROCEDURE .)
- Disconnect the negative battery cable.
- Remove in the order indicated in the table.
- Install in the reverse order of removal.
