Intake Manifold Installation Note

WARNING: This page is about a different car, the 2005 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.

Tighten the intake manifold installation bolts in the order indicated.
Tightening torque
1. 8-12 N.m {82-122 kgf.cm, 72-105 in.lbf}

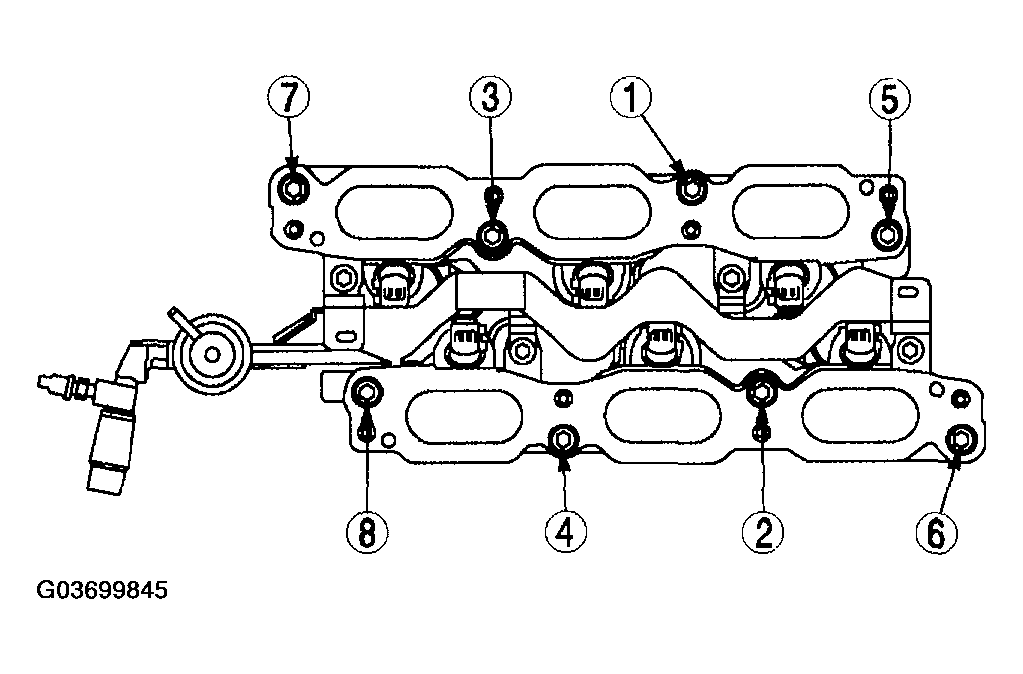

Fig 1: Tightening Intake Manifold Bolts In Order
Courtesy of MAZDA MOTORS CORP.
