Cooling Fan Motor Removal/Installation
WARNING: This page is about a different car, the 2005 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.
- Place the vehicle on a two-post lift.
- Disconnect the negative battery cable.
- Remove the radiator grille. (See FRONT BUMPER REMOVAL/INSTALLATION .)
- Remove the transverse member and the engine mount member. (See ENGINE REMOVAL/INSTALLATION .)

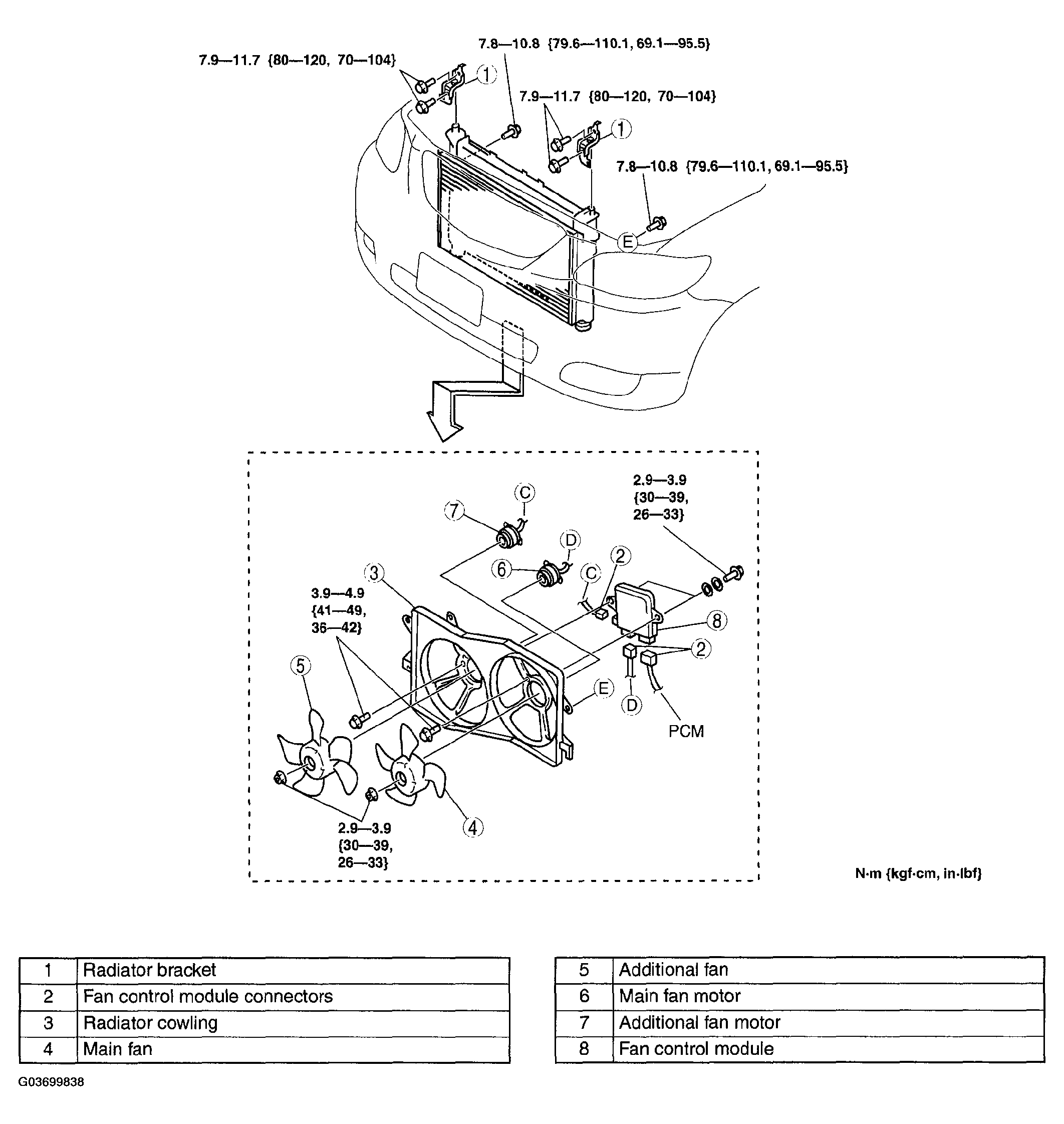

- Remove in the order indicated in the table.
- Install in the reverse order of removal.
