Cooling Fan Motor Inspection

WARNING: This page is about a different car, the 2005 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.

Verify that the battery is fully charged. (See BATTERY REMOVAL/INSTALLATION .)
Disconnect the fan control module connector (2 terminals).
Connect battery voltage and an ammeter to the fan control module connector on fan motor side (2 terminals).
Perform the same procedure as Step 2 for the condenser fan motor.

Fig 1: Connecting Battery Voltage Ammeter To Fan Control Module Connector
Courtesy of MAZDA MOTORS CORP.
Verify that the cooling fan motor operates smoothly at the standard current draw.
- If not as specified, replace the cooling fan motor.
Standard current
1. Type A (Without sub-harness): 25.5-28.5 (A) [12 V]
2. Type B (With sub-harness): 15.5-18.5 (A) [12 V]

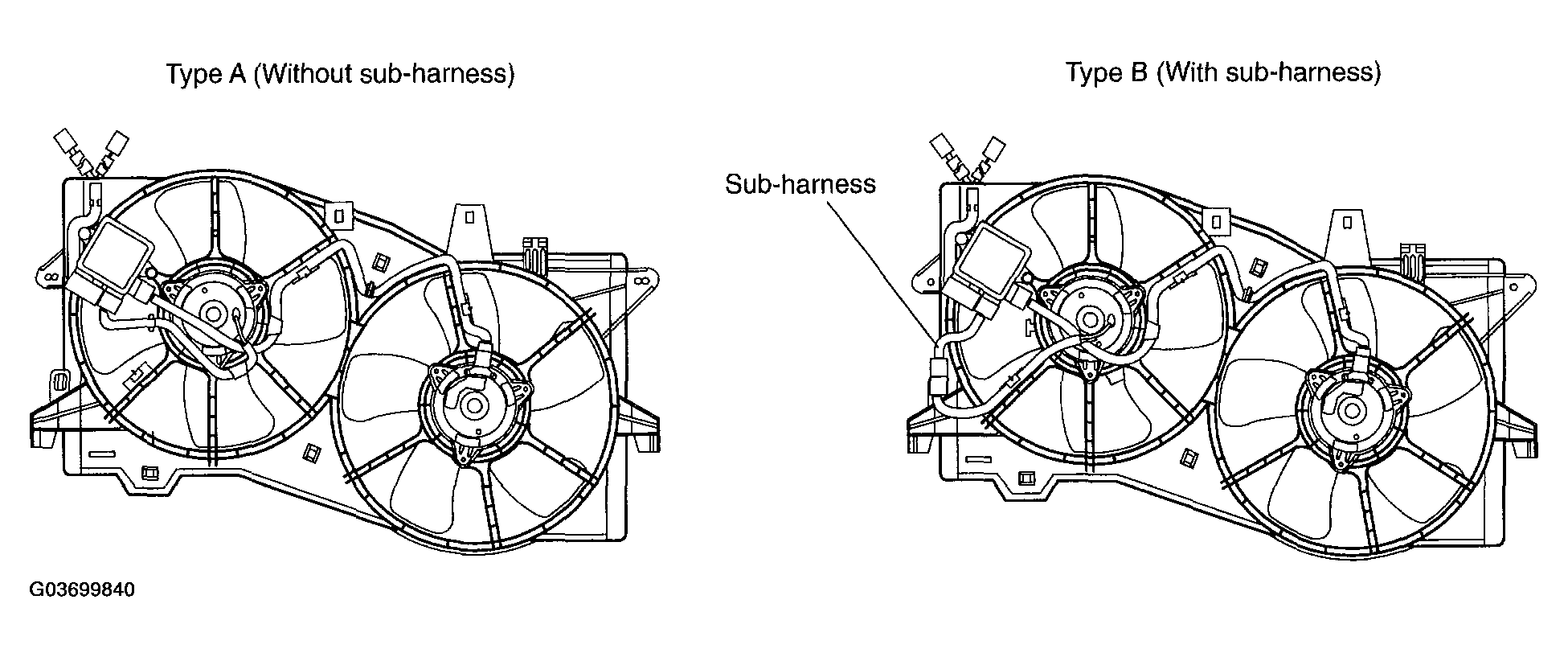

Fig 2: Identifying Cooling Fan Motor (Type A And B)
Courtesy of MAZDA MOTORS CORP.
