Oil Pan Installation Note

WARNING: This page is about a different car, the 2005 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.

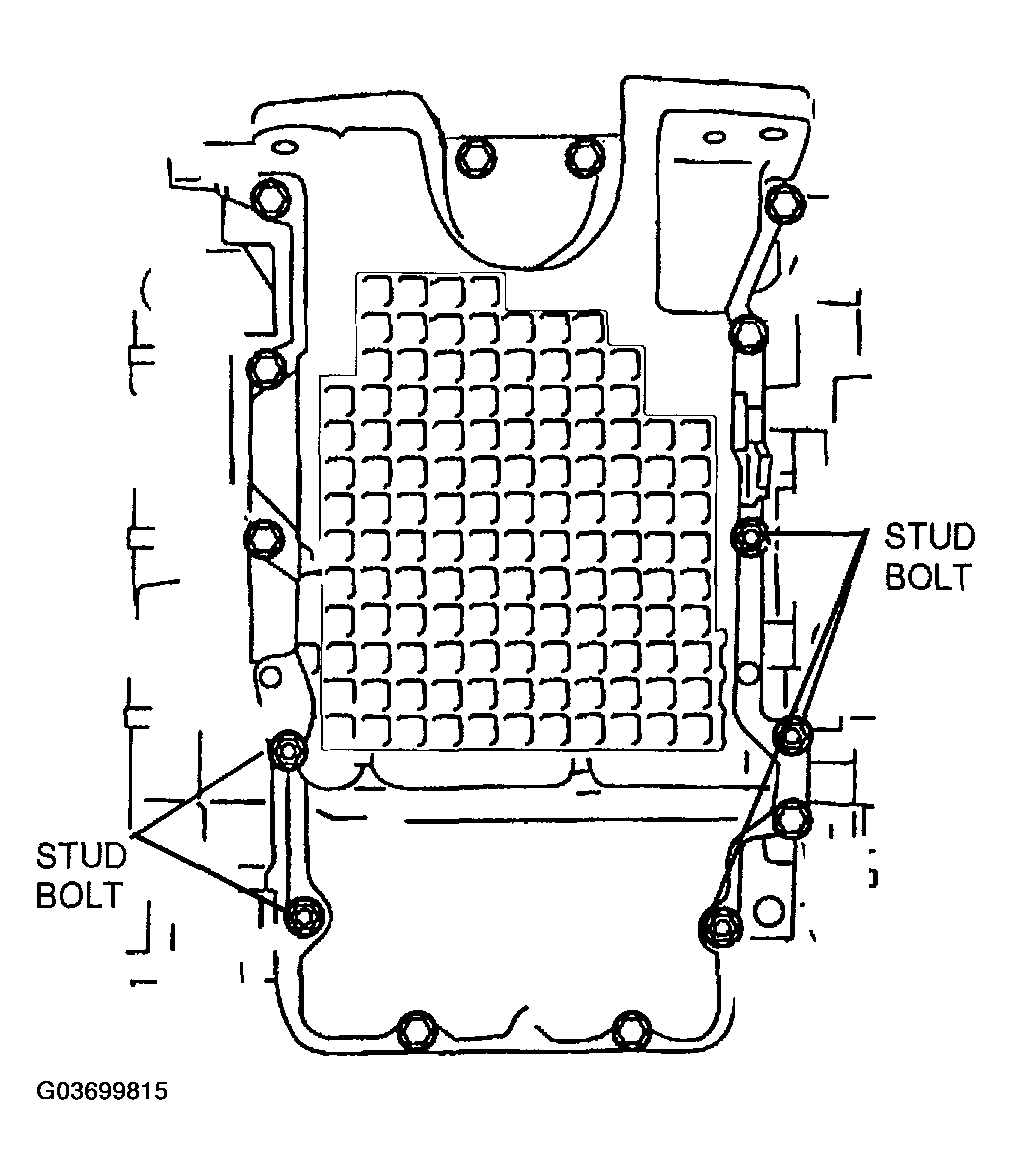

Install the oil pan bolts and studs as shown.

Fig 1: Installing Oil Pan Bolts And Studs
Courtesy of MAZDA MOTORS CORP.

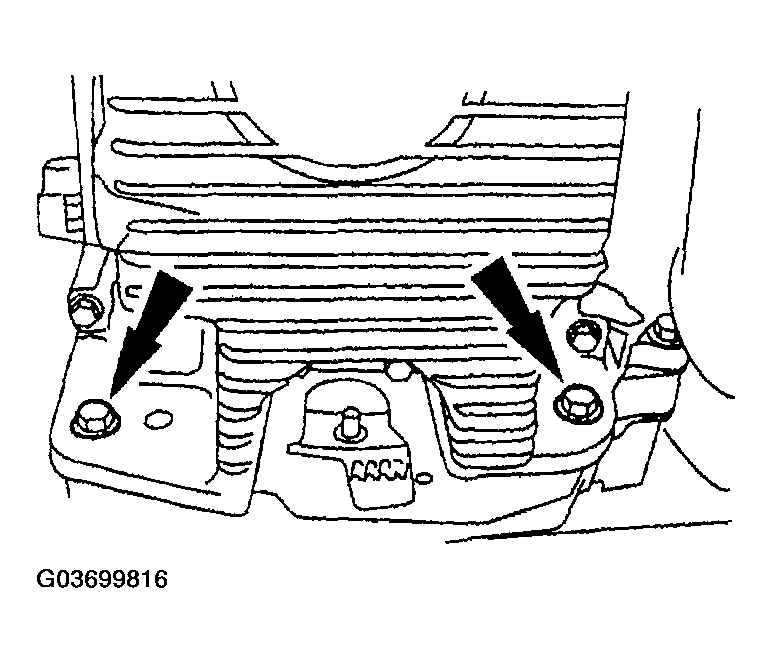

Tighten the transaxle housing bolts to oil pan.

Fig 2: Tightening Transaxle Housing Bolts To Oil Pan
Courtesy of MAZDA MOTORS CORP.

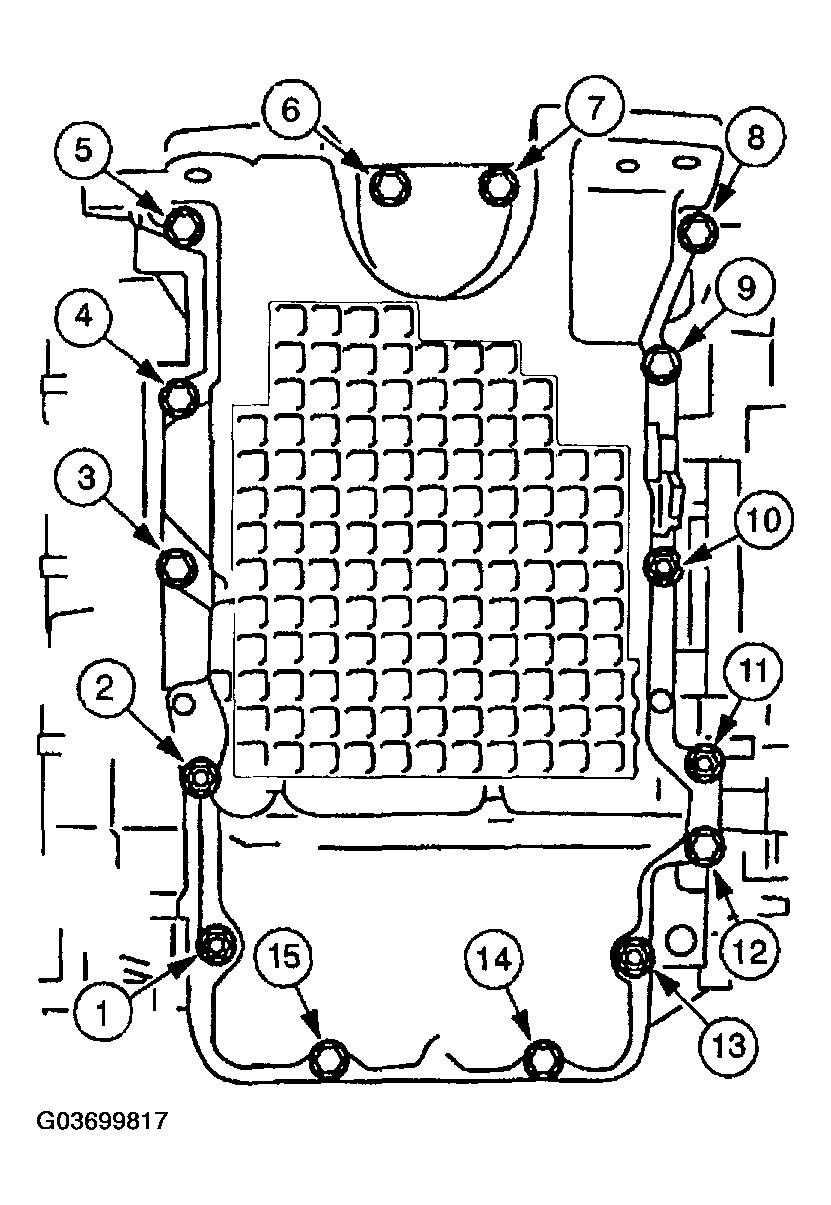

Tighten the oil pan bolts and studs in several passes in the order shown.

Fig 3: Tightening Oil Pan Bolts And Studs In Order
Courtesy of MAZDA MOTORS CORP.
