Oil Pan Gasket Installation Note
WARNING: This page is about a different car, the 2005 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
- The oil pan must be installed and the bolts tightened within 4 min of silicone sealant application.

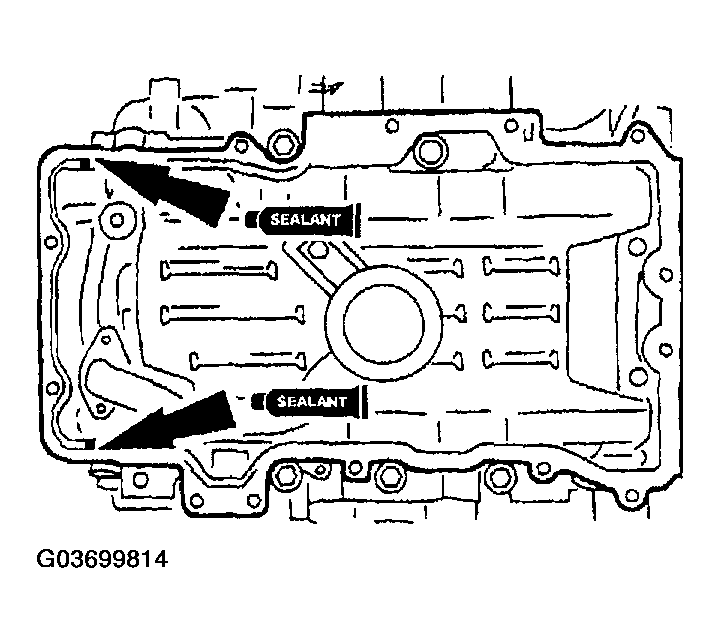

- Apply silicone sealant to the cylinder block as shown.
Dot diameter
- 10 mm {0.39 in}
Courtesy of MAZDA MOTORS CORP.
