Oil Pan Removal/Installation: Notes

WARNING: This page is about a different car, the 2005 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative battery cable.
Drain the engine oil. (See ENGINE OIL REPLACEMENT .)
Remove the front pipe. (See EXHAUST SYSTEM REMOVAL/INSTALLATION .)
Remove in the order indicated in the table.
Install in the reverse order of removal.
Start the engine and inspect for engine oil leakage.

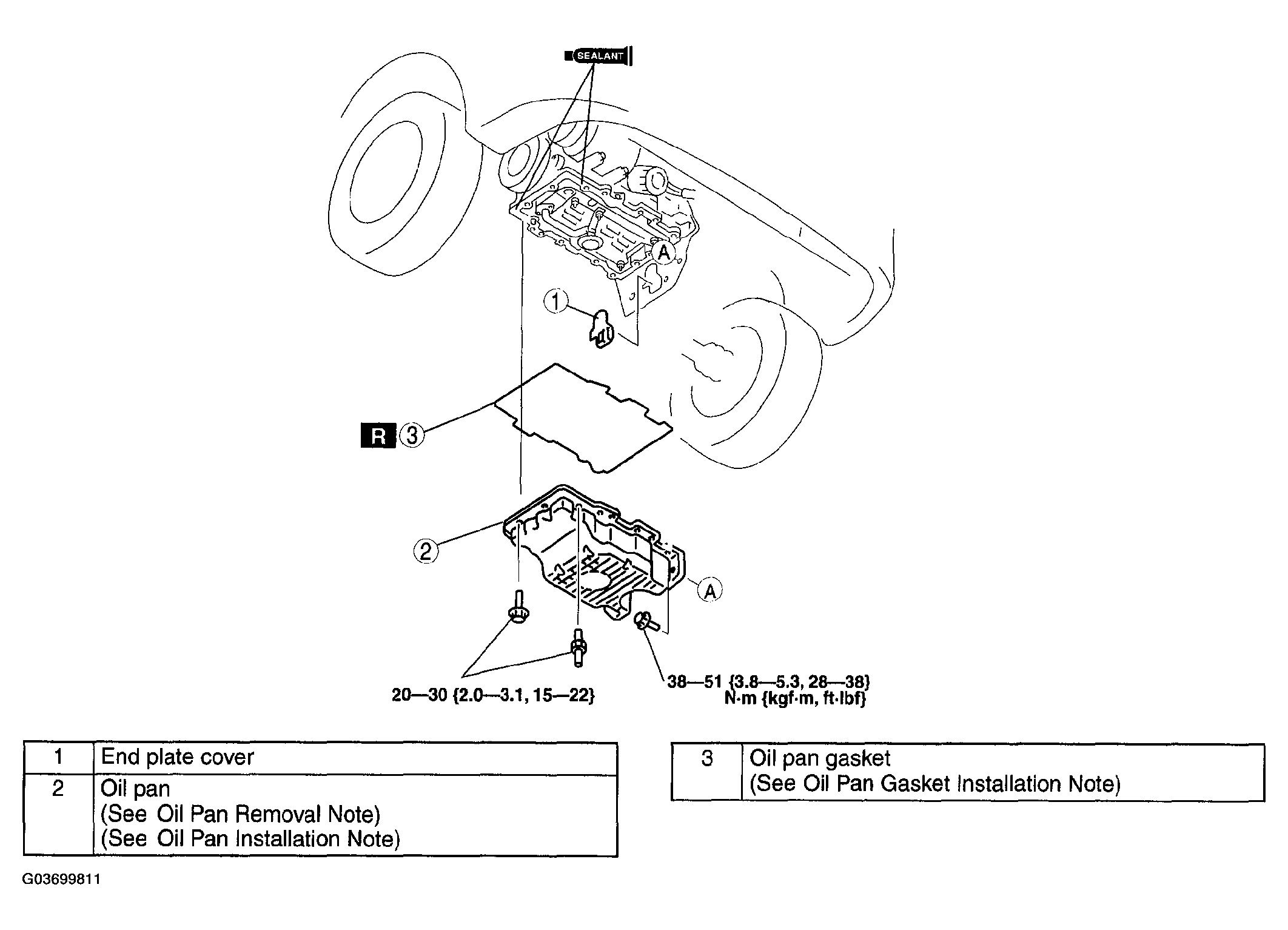

Fig 1: Identifying Oil Pan Components
Courtesy of MAZDA MOTORS CORP.
