Quick Diagnosis Chart

WARNING: This page is about a different car, the 2005 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.

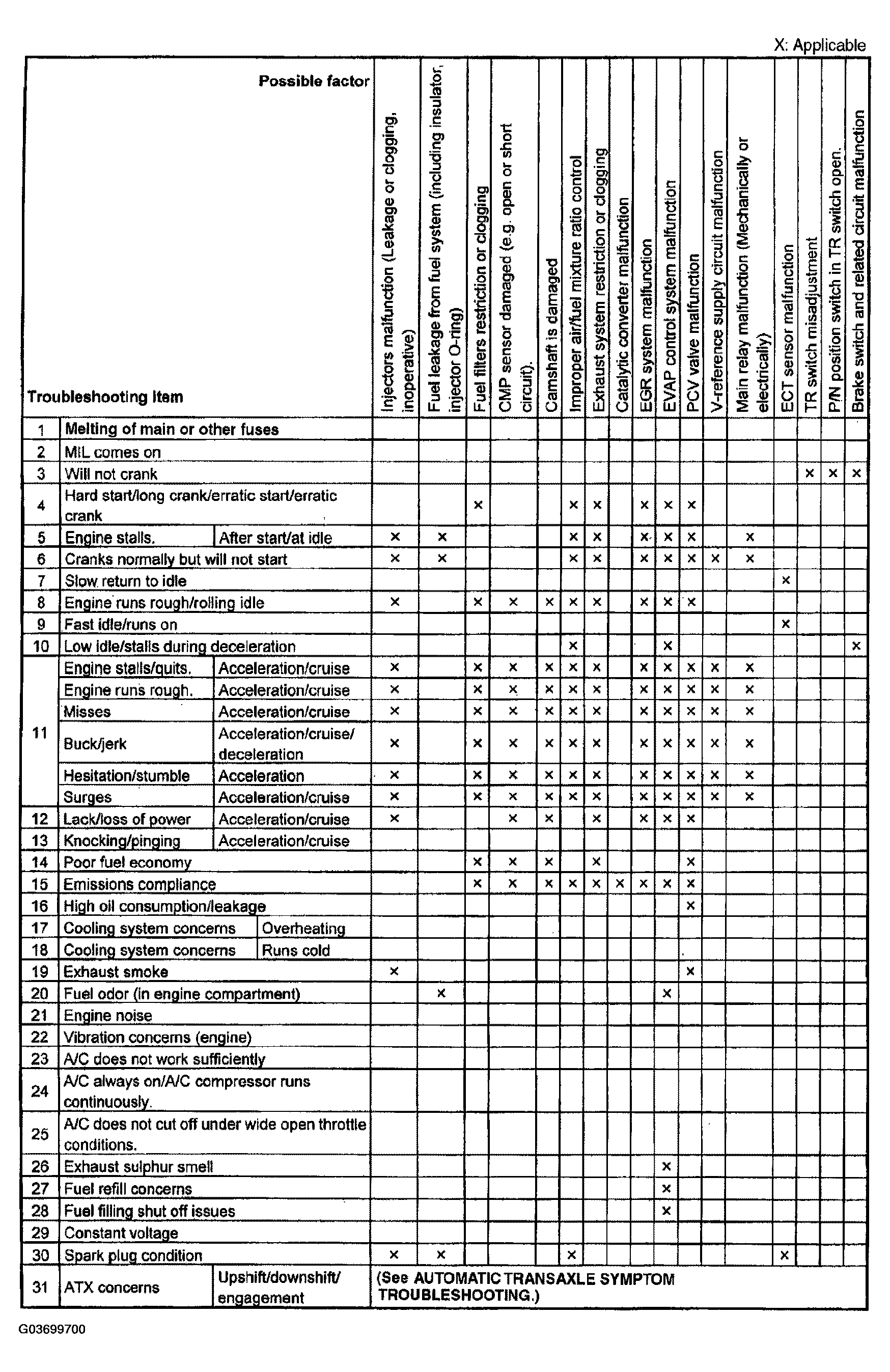

Fig 1: Symptom Quick Diagnosis Chart (1 Of 4)

Courtesy of MAZDA MOTORS CORP.

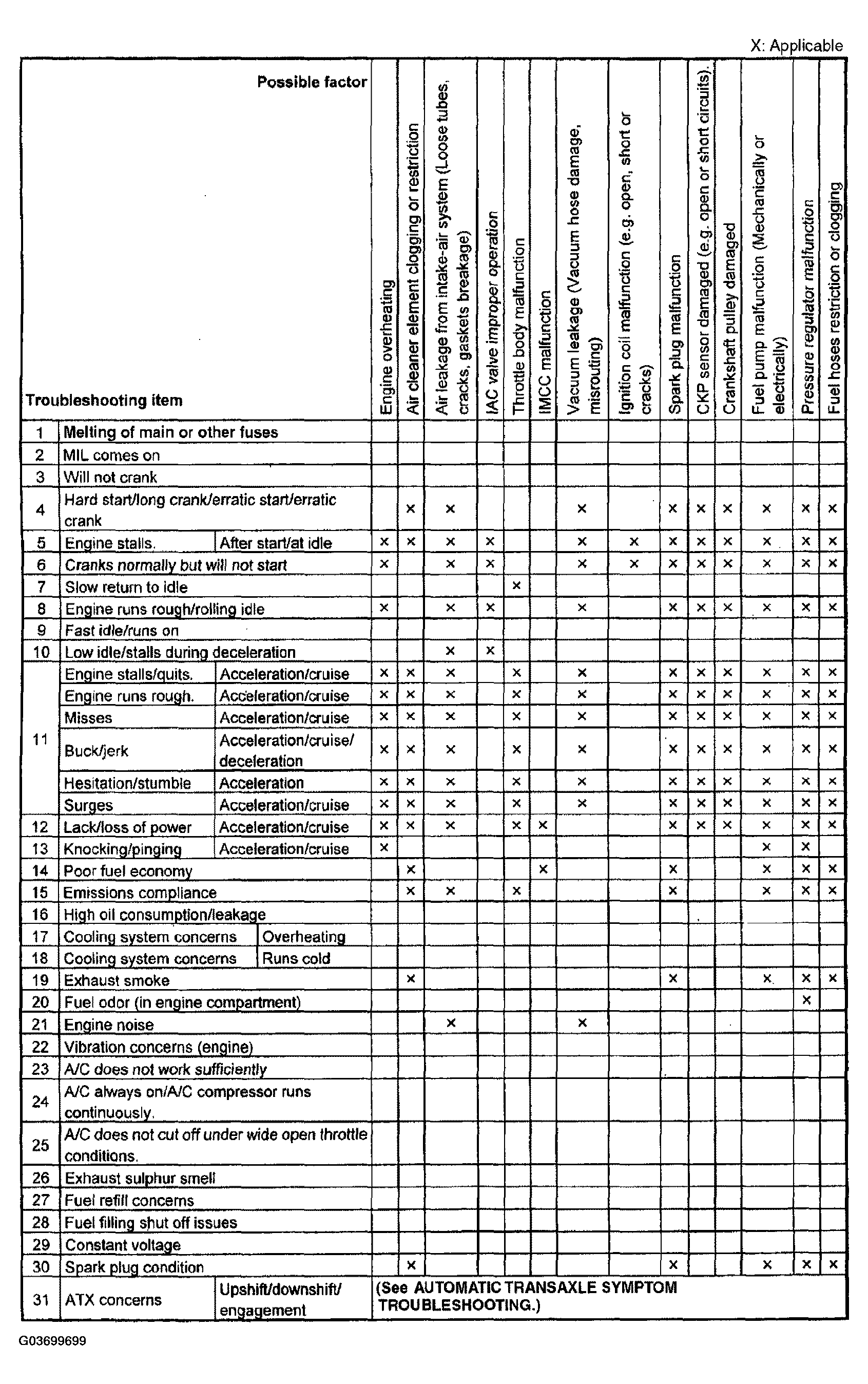

Fig 2: Symptom Quick Diagnosis Chart (2 Of 4)

Courtesy of MAZDA MOTORS CORP.

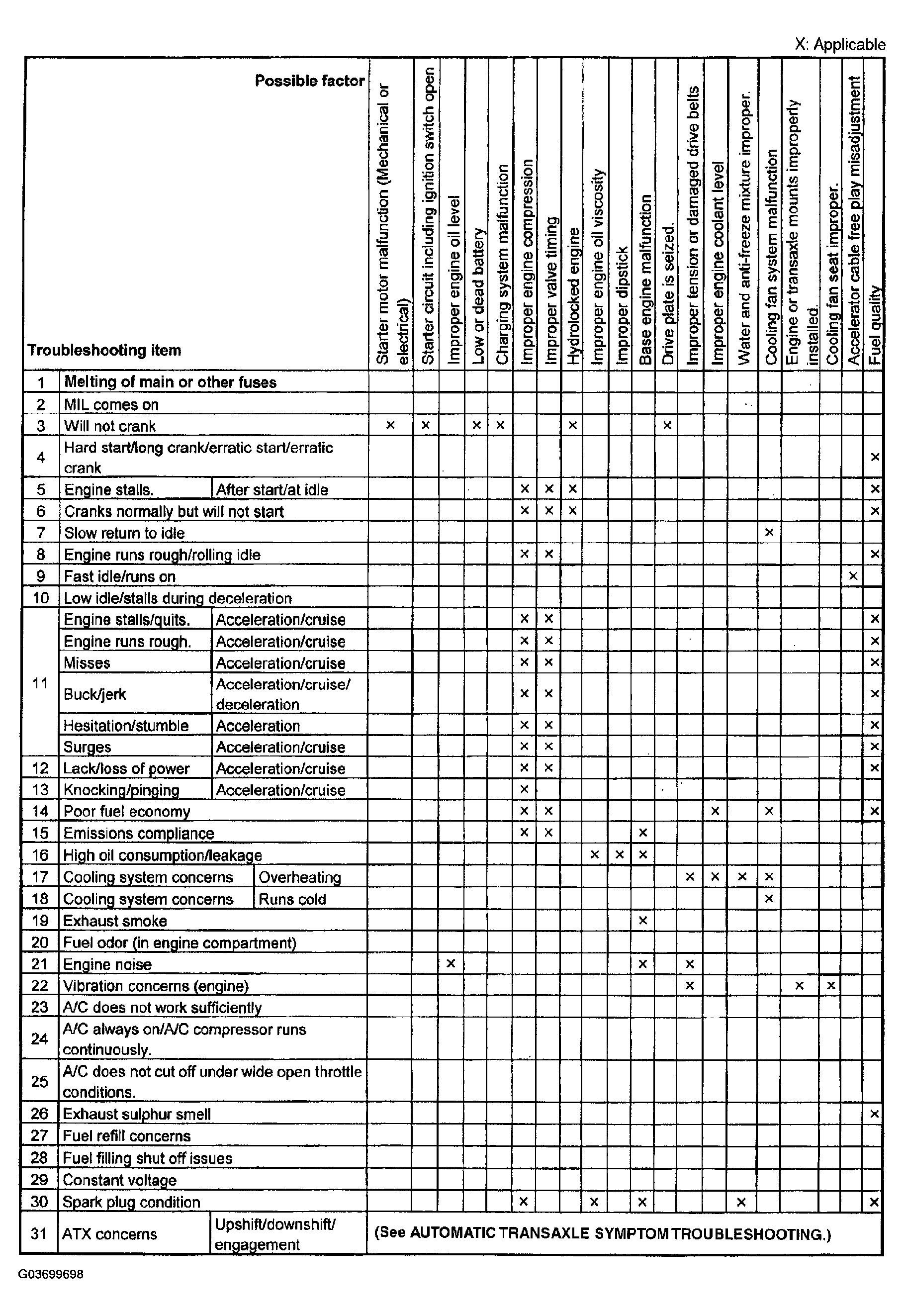

Fig 3: Symptom Quick Diagnosis Chart (3 Of 4)

Courtesy of MAZDA MOTORS CORP.

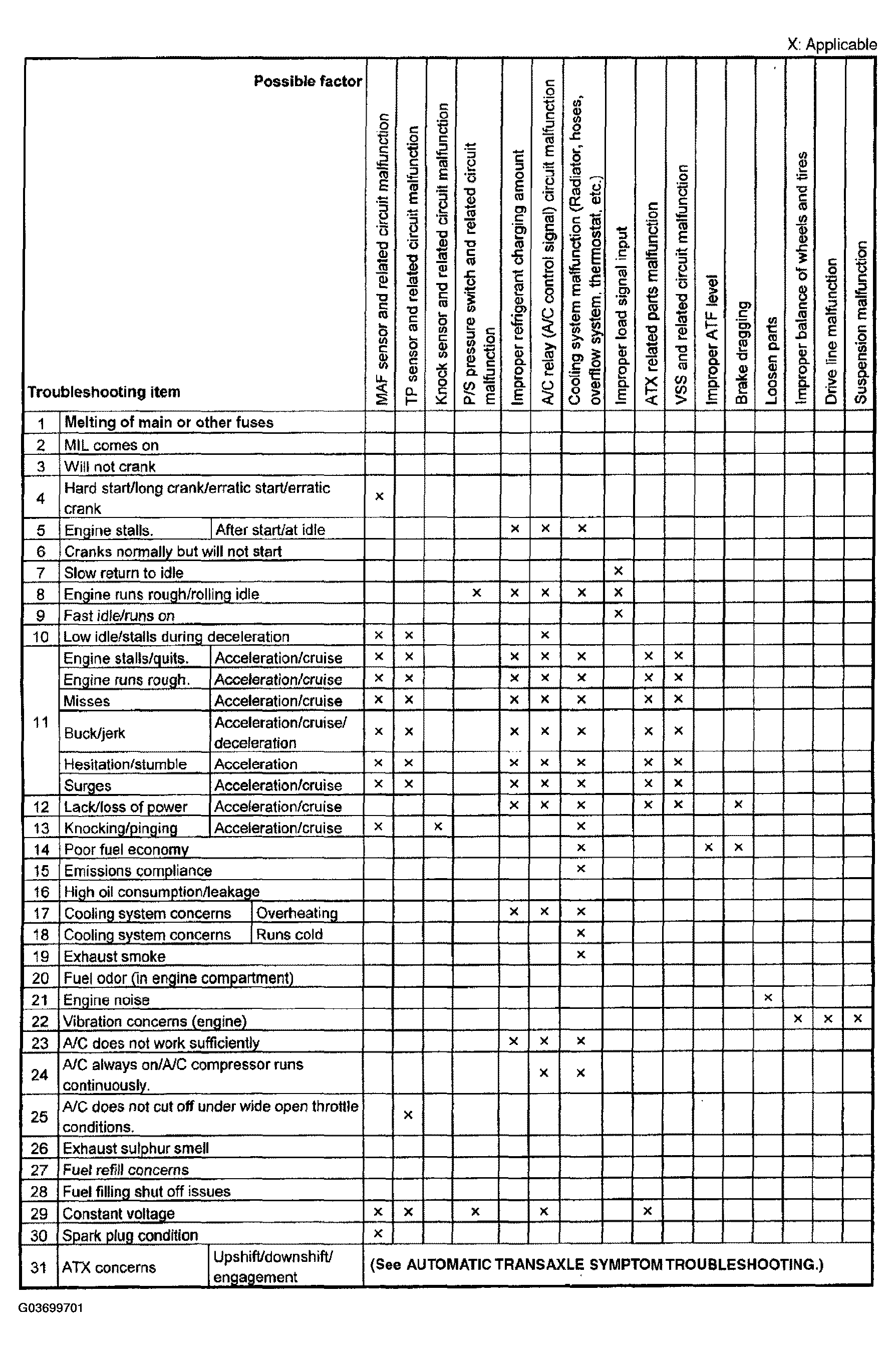

Fig 4: Symptom Quick Diagnosis Chart (4 Of 4)

Courtesy of MAZDA MOTORS CORP.
