Timing Chain Component (RH) Removal Note

WARNING: This page is about a different car, the 2005 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.

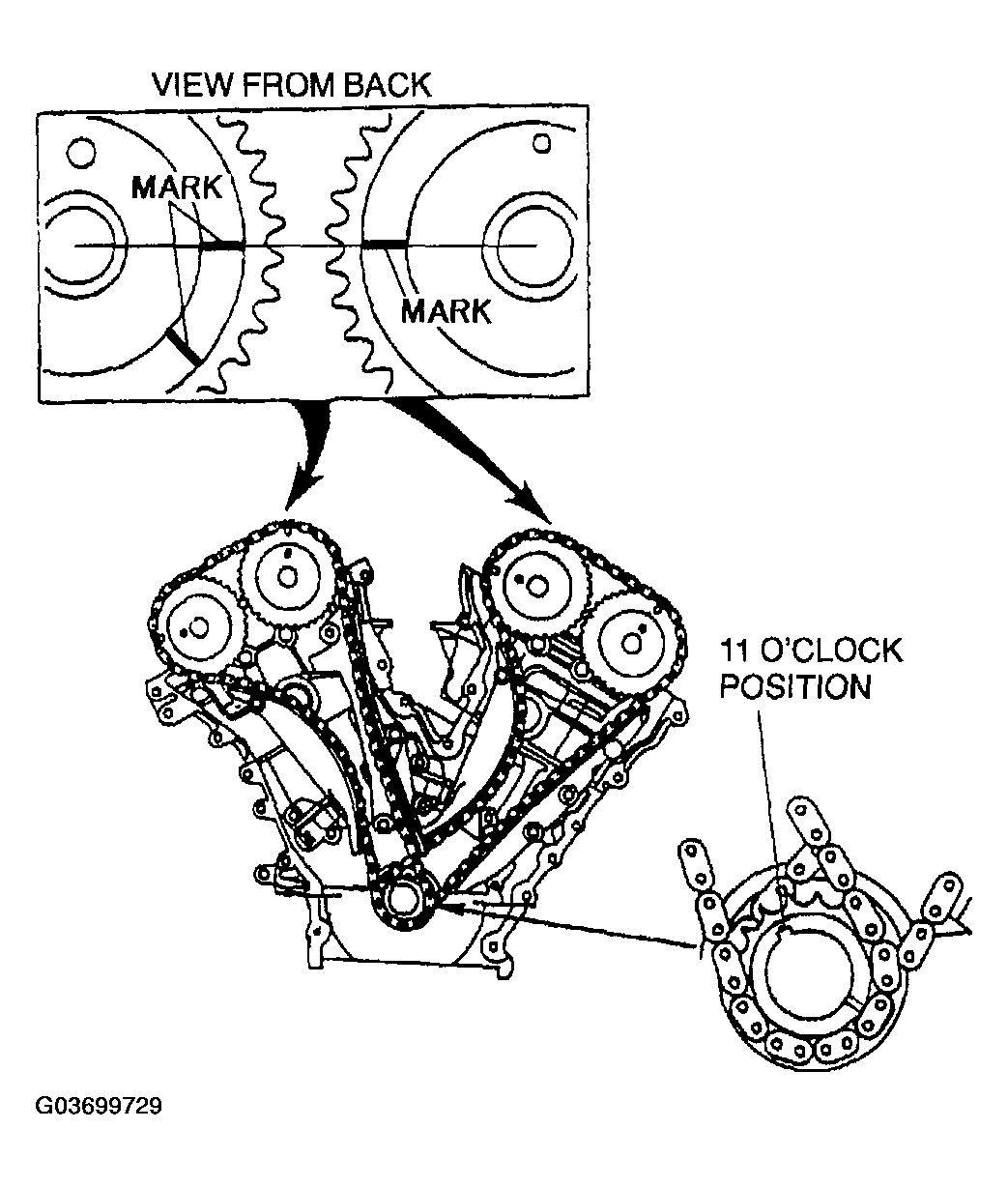

Verify that mark on each sprocket is in the TDC position as shown.

Fig 1: Verifying Mark On Each Sprocket Is In TDC Position
Courtesy of MAZDA MOTORS CORP.
Turn the crankshaft clockwise so that the crankshaft keyway is in the 3 o'clock position. (The camshafts (RH) are in the neutral position.)
CAUTION:
- Do not rotate the crankshaft counterclockwise. The timing chains may bind, causing engine damage.

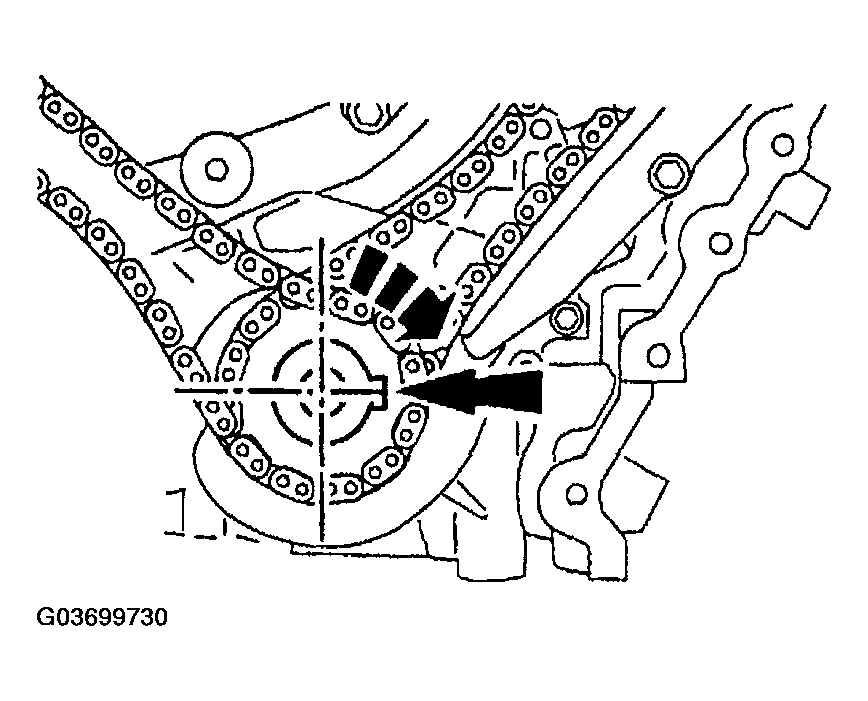

Fig 2: Turning Crankshaft So That Crankshaft Keyway Is In 3 O'Clock Position
Courtesy of MAZDA MOTORS CORP.

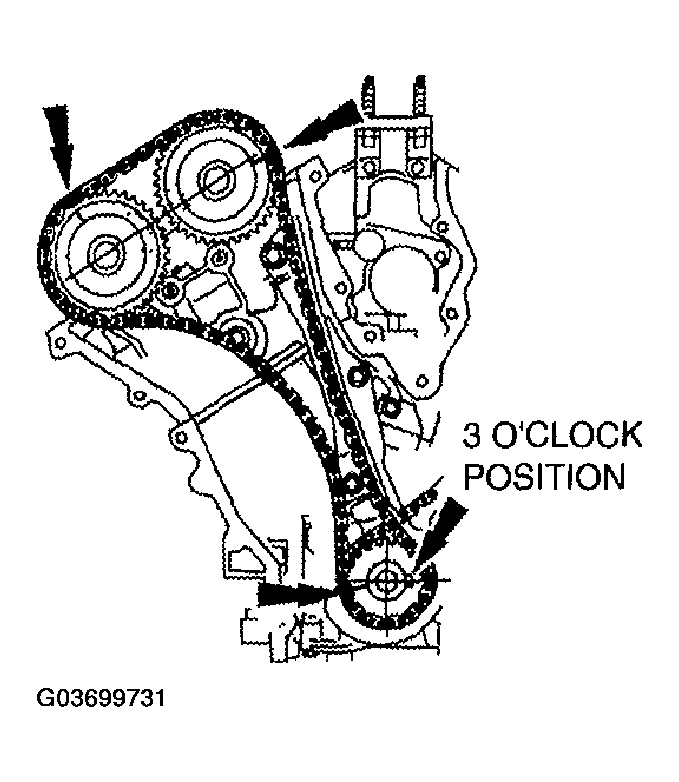

Place alignment marks on the timing chain corresponding to each of the alignment marks on the timing sprocket.

Fig 3: Placing Alignment Marks On Timing Chain
Courtesy of MAZDA MOTORS CORP.

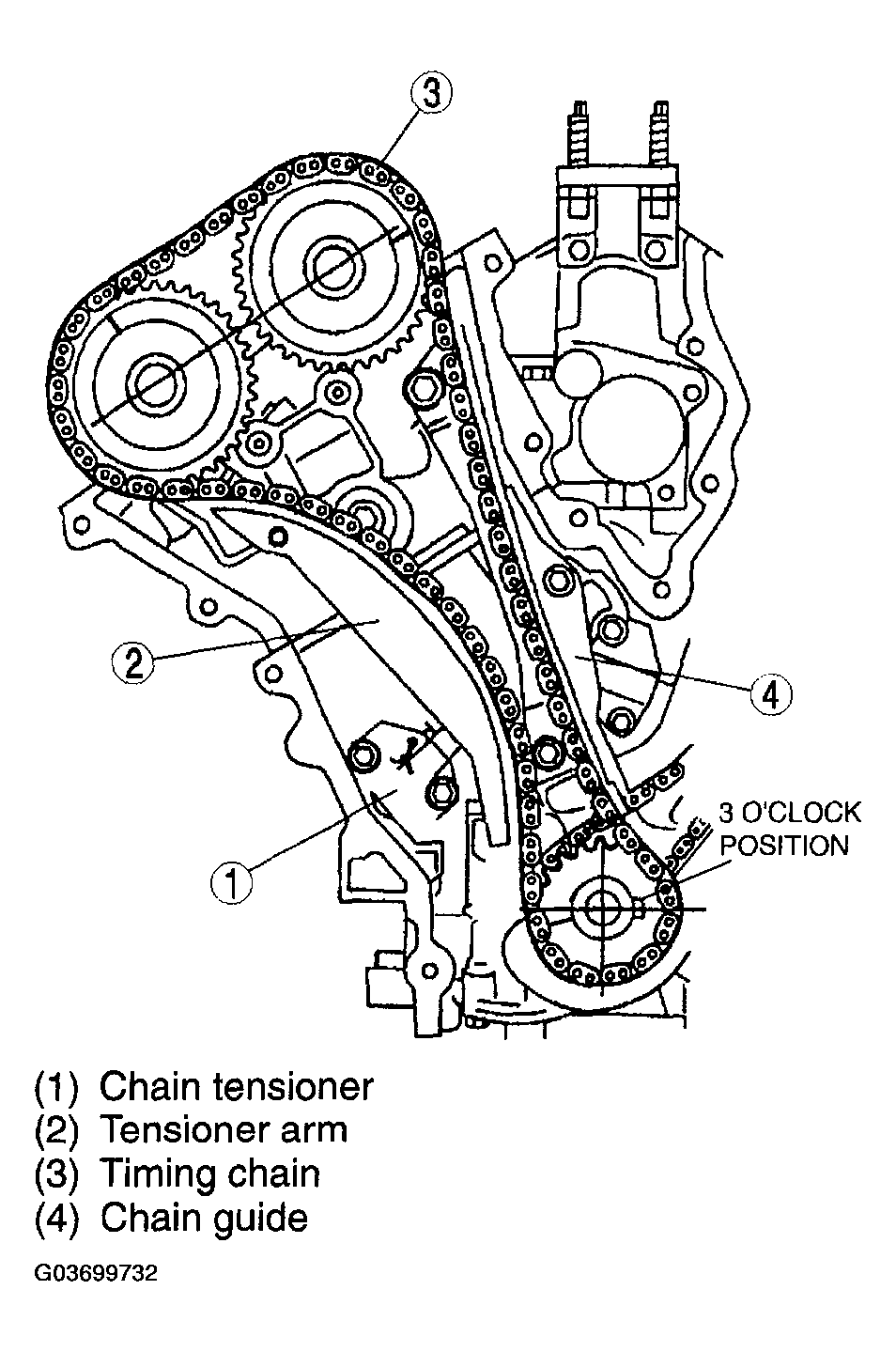

Remove the timing chain (RH) in the following order.
1. Chain tensioner
2. Tensioner arm
3. Timing chain
4. Chain guide
Fig 4: Removing Timing Chain (RH)
Courtesy of MAZDA MOTORS CORP.
