No.3 Engine Joint Bracket Removal Note

WARNING: This page is about a different car, the 2005 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the engine hanger (RH). (See ENGINE HANGER INSTALLATION NOTE .)
  2. Suspend the engine using the SSTs.
  3. Remove the No.3 engine joint bracket.

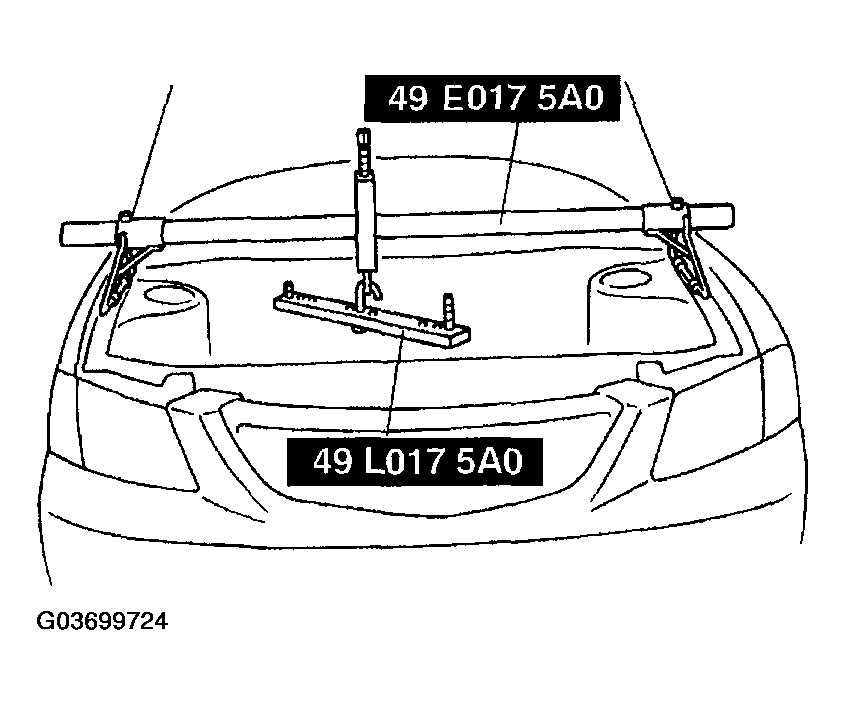

    Fig 1: Installing Engine Hanger
    G03699724Courtesy of MAZDA MOTORS CORP.
