Front Oil Seal Installation Note

WARNING: This page is about a different car, the 2005 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.
  1. Assemble the front oil seal using part A of the SST  [303-335 (49 UN30 3335)] and the SST  [303-102 (49 UN01 002)].
  2. Apply clean engine oil to the oil seal.
  3. Push the oil seal slightly in by hand.
    Fig 1: Identifying SST Components
    G03699762Courtesy of MAZDA MOTORS CORP.
  4. Compress the oil seal using the SSTs.

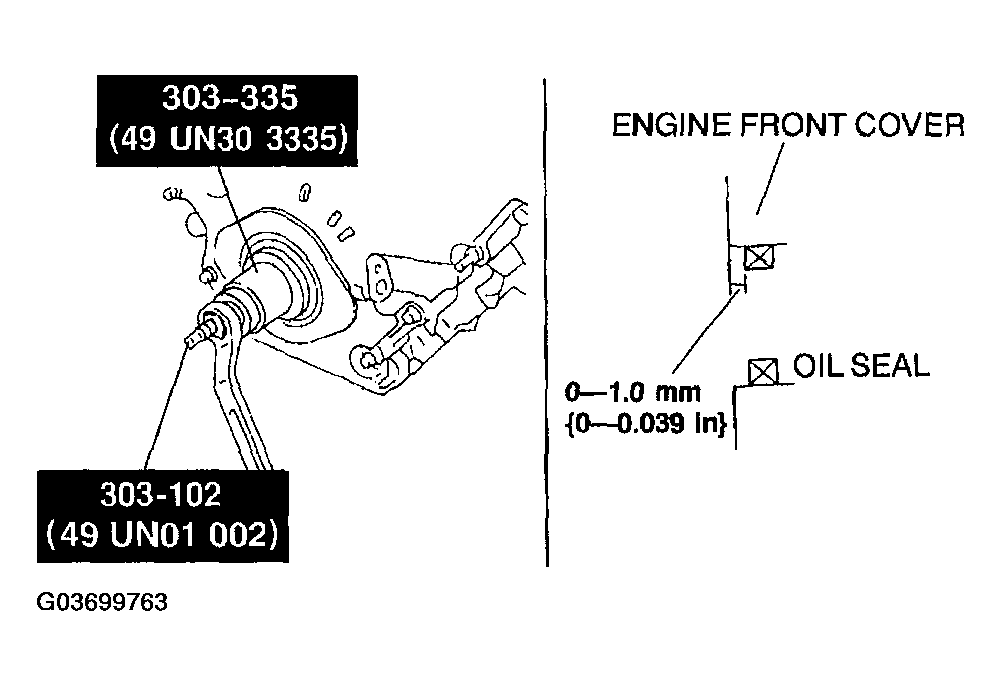

    Fig 2: Compressing Oil Seal Using SSTs
    G03699763Courtesy of MAZDA MOTORS CORP.
